Can You Make My Part? Our Manufacturing Capabilities

Materials, tolerances, part sizes, quantities and lead times for every process we run, from 3D-printed prototypes to injection-molded production and assembled electronics.

View Portfolio

24hr

Quote turnaround

18+

Countries delivered to worldwide

900+

Express air shipments

36+

Sea containers (40 ft)

Read Client Reviews →

At a Glance

What Can You Make, and How Fast?

The short answer for every process. Each name links to the full spec card further down.

Process	Materials	Standard tolerance	Part size	Best-fit quantity	First samples	Production
Rapid Prototyping
3D Printing	PLA, PETG, ABS, TPU, SLA resin, nylon PA12	FDM ±0.2 to ±0.5 mm, SLA ±0.1 to ±0.2 mm	FDM up to 1000 × 1000 × 1000 mm; SLA up to 400 × 400 × 400 mm; MJF up to 380 × 284 × 380 mm	1 to 100	3 to 5 working days	1 to 2 weeks
CNC Machining	Aluminum 6061 and 7075, stainless 304 and 316, mild steel, brass, POM, nylon	±0.05 to ±0.13 mm; precision ±0.01 to ±0.025 mm	Milled parts up to about 800 × 500 × 500 mm	1 to 5,000	7 to 10 working days	2 to 4 weeks
Sheet Metal Fabrication	Mild steel (CRCA), galvanized steel, stainless 304, aluminum 5052, 6061, 3003 and 1100	±0.25 to ±0.50 mm; precision ±0.13 to ±0.20 mm	Sheet 0.5 to 6 mm thick; flat parts up to 3000 × 1500 mm	1 to 10,000	7 to 10 working days	2 to 3 weeks
Mass Production
Injection Molding	ABS, PP, PC, PC/ABS, nylon PA6 and PA66, POM, TPE and TPU, silicone	±0.10 to ±0.20 mm; precision ±0.025 to ±0.05 mm	From a few grams up to about 700 × 500 mm	500 to 100,000+ a year	4 to 8 weeks after design sign-off	2 to 4 weeks per run
Vacuum Casting	PU resins: ABS-like, PP-like, rubber-like, clear	About ±0.2 to ±0.3 mm	Up to about 400 mm	10 to 25	2 to 3 weeks	1 to 2 weeks per batch
Metal Casting	Zinc Zamak 3 and 5, aluminum ADC12 and A380, stainless steel (investment casting)	±0.20 to ±0.50 mm as cast; precision ±0.05 to ±0.10 mm	Parts up to about 300 mm	1,000 to 50,000+	5 to 8 weeks after design sign-off	2 to 4 weeks per run
Product Packaging	Corrugated E-flute, kraft board, SBS board, rigid greyboard	Made to your dieline	Mailer boxes, rigid two-piece boxes, folding cartons, sleeves	500 to 50,000 boxes	7 to 10 working days	15 to 20 working days
PCB & Box Build
PCB Fabrication	FR-4, 1 to 32 layers (aluminum core and flex on request)	Board outline ±0.2 mm; 0.1 mm (4 mil) trace and gap	Boards from 3 × 3 mm up to about 600 × 670 mm	5 to 100,000+ boards	5 to 10 working days	1 to 3 weeks
PCB Assembly & Box Build	SMT and through-hole, one or both sides, BGA and fine pitch	Built and tested to your drawing and test plan	Parts down to 0402; enclosures, harnesses and packaging	10 to 100,000+ boards; box build from 1 unit	2 to 3 weeks including parts	3 to 6 weeks

Swipe sideways to see every column.

Typical ranges. Your quote confirms the exact limits for your part. There is no minimum order: the best-fit quantity is where each process gives the best price per part.

Process by Process

How Precise Can You Go, and What Finishes Do You Offer?

Full specs for each process, with parts we have made for real clients.

Rapid Prototyping

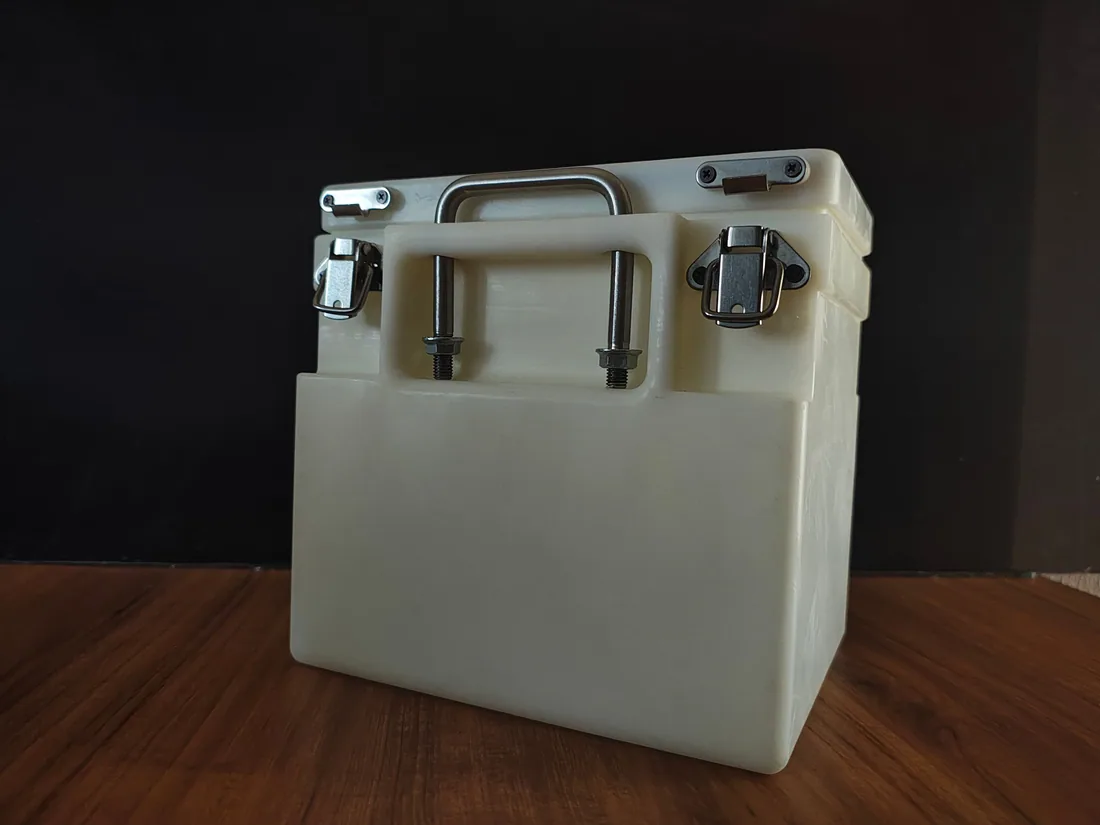

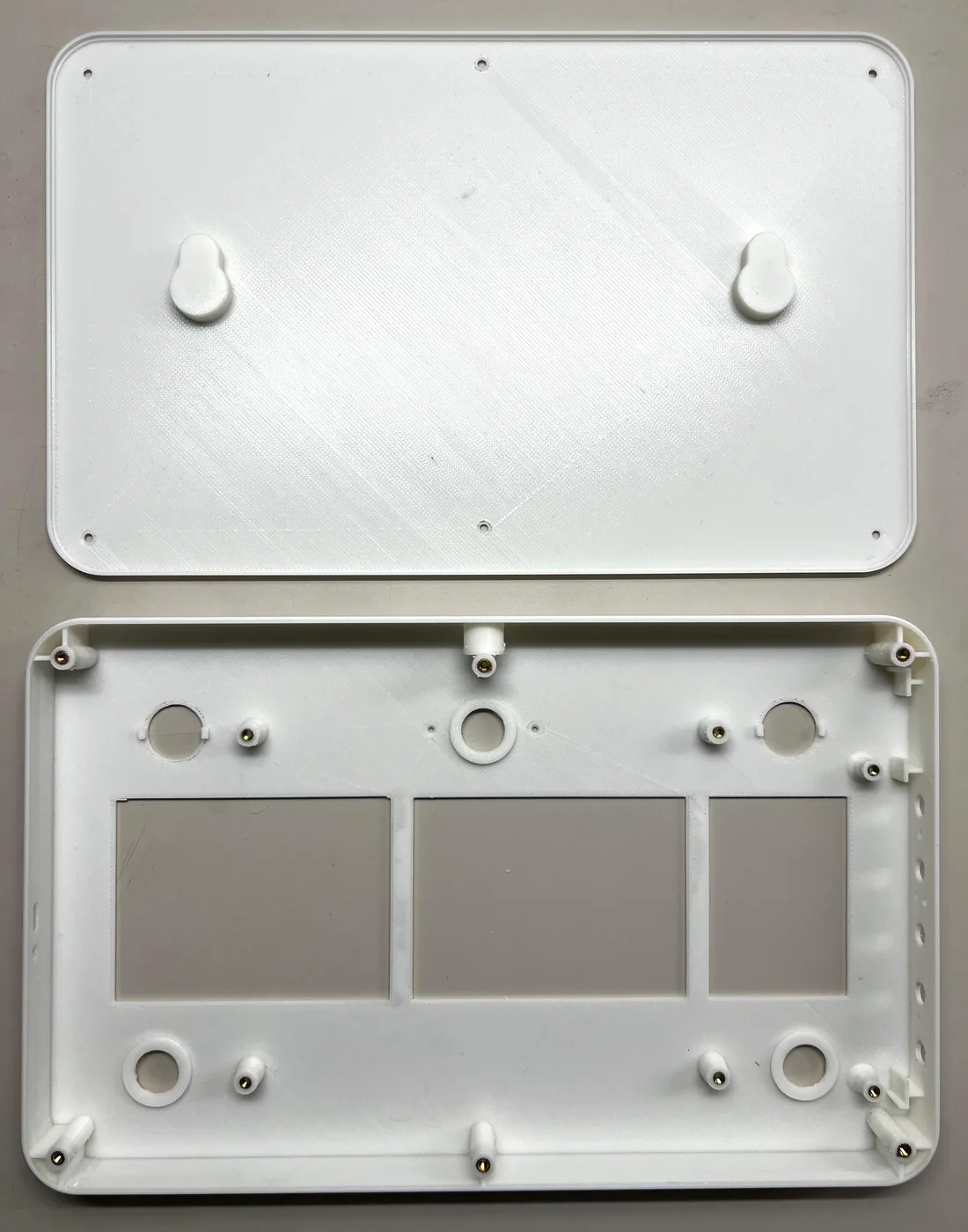

3D Printing

PLA, PETG, ABS, TPU, SLA resin, nylon PA12

Tolerance: FDM ±0.2 to ±0.5 mm, SLA ±0.1 to ±0.2 mm
Part size: FDM up to 1000 × 1000 × 1000 mm; SLA up to 400 × 400 × 400 mm; MJF up to 380 × 284 × 380 mm
Best-fit quantity: 1 to 100
Lead time: Samples: 3 to 5 working days
Production: 1 to 2 weeks

Technologies: FDM, SLA (resin) and MJF (nylon PA12)
Larger parts: Printed in sections and joined
Finishes: As printed, sanded, primed or painted
Best for: Prototypes, fit checks, jigs and short runs before tooling

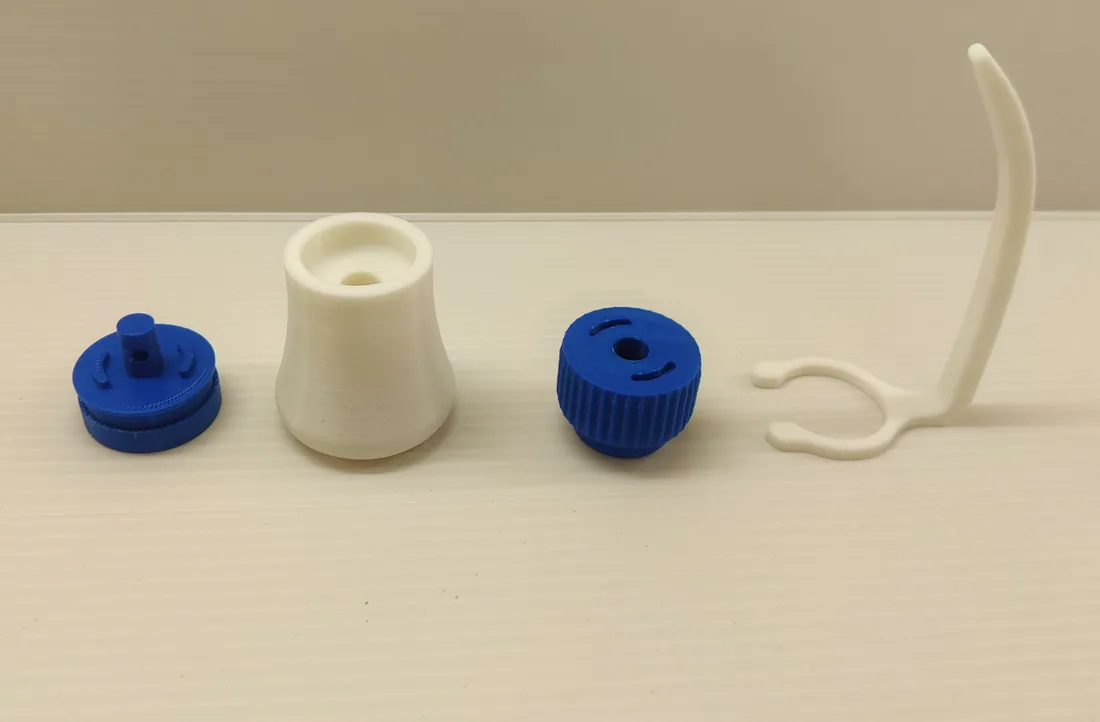

Process page →Project: The Atlas Handle →

Rapid Prototyping

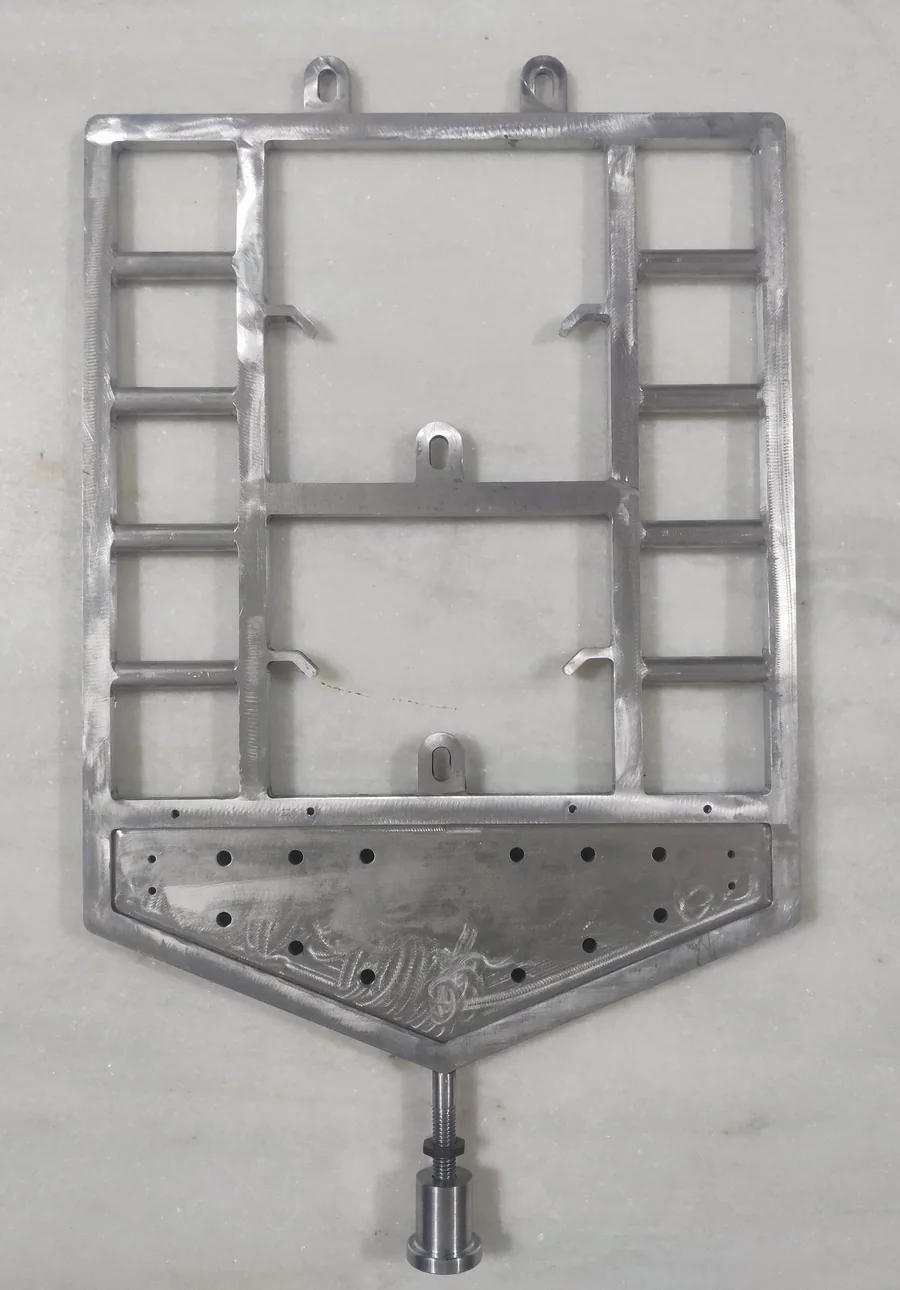

CNC Machining

Aluminum 6061 and 7075, stainless 304 and 316, mild steel, brass, POM, nylon

Tolerance: ±0.05 to ±0.13 mm; precision ±0.01 to ±0.025 mm
Part size: Milled parts up to about 800 × 500 × 500 mm
Best-fit quantity: 1 to 5,000
Lead time: Samples: 7 to 10 working days
Production: 2 to 4 weeks

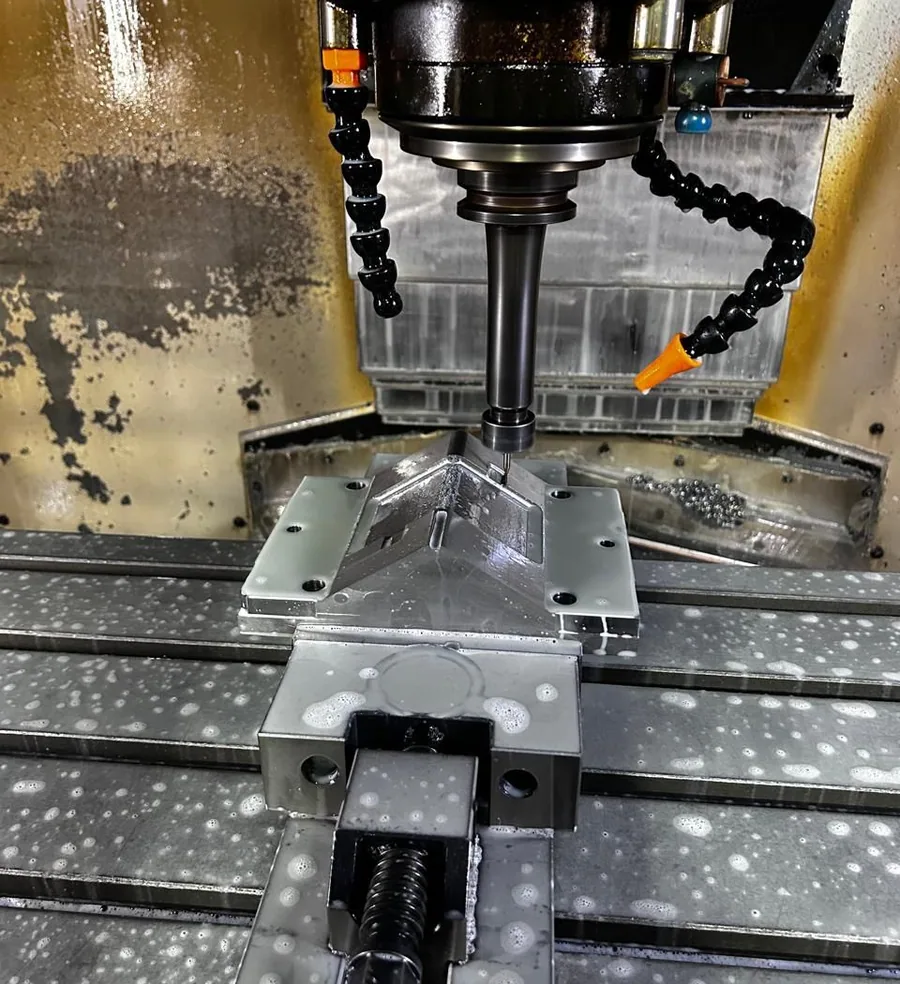

Processes: 3-axis and 5-axis milling, turning, grinding and polishing
High-precision VMC: ±0.0025 to ±0.005 mm, priced by tolerance tier
Finishes: As machined, bead blasted, anodized, hard anodized, powder coated, plated
Best for: Metal prototypes, precision parts, fixtures and mold inserts

Process page →Project: Telescopic Aluminum Hanger →

Rapid Prototyping

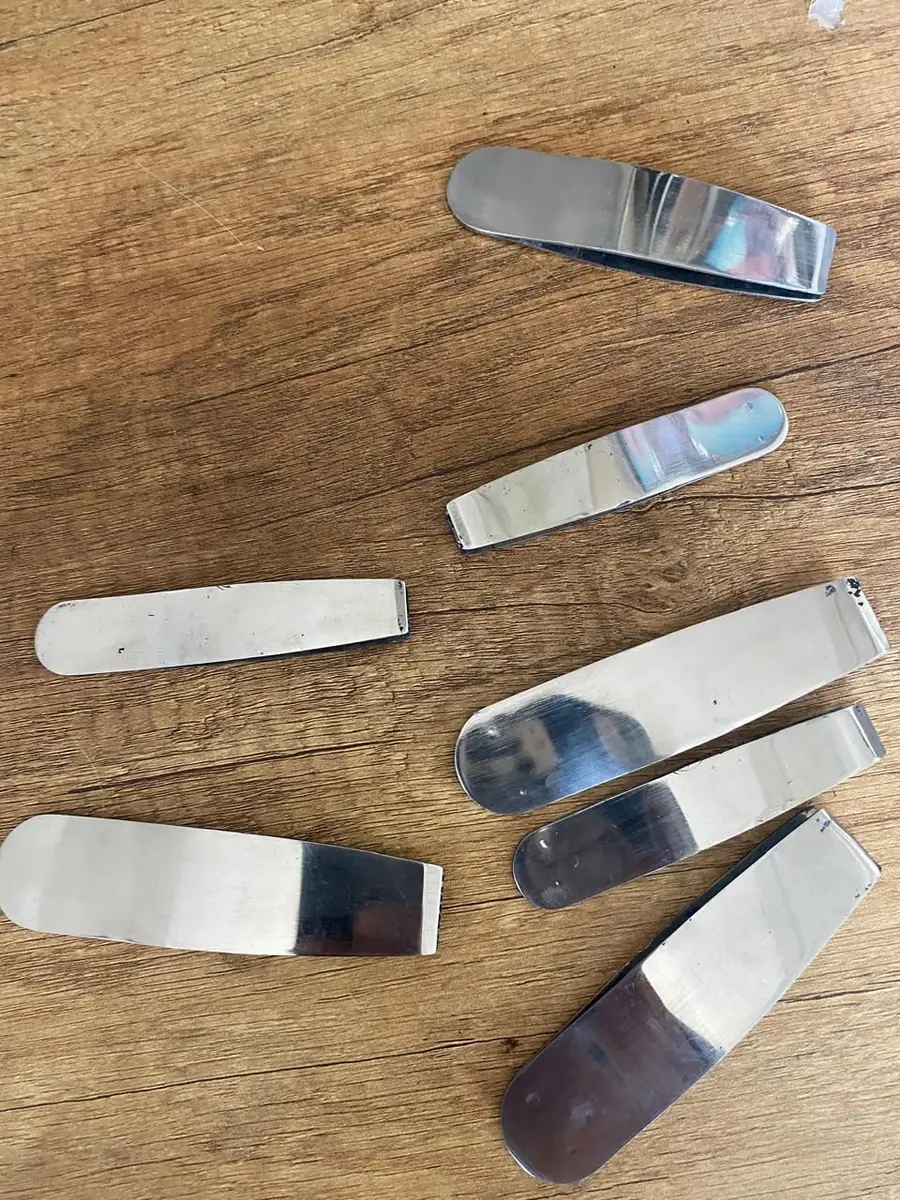

Sheet Metal Fabrication

Mild steel (CRCA), galvanized steel, stainless 304, aluminum 5052, 6061, 3003 and 1100

Tolerance: ±0.25 to ±0.50 mm; precision ±0.13 to ±0.20 mm
Part size: Sheet 0.5 to 6 mm thick; flat parts up to 3000 × 1500 mm
Best-fit quantity: 1 to 10,000
Lead time: Samples: 7 to 10 working days
Production: 2 to 3 weeks

Processes: Laser cutting, CNC bending, welding, PEM hardware insertion, tapping
Finishes: Powder coat, zinc plating, brushed, PVD coating
Best for: Enclosures, brackets, frames and panels

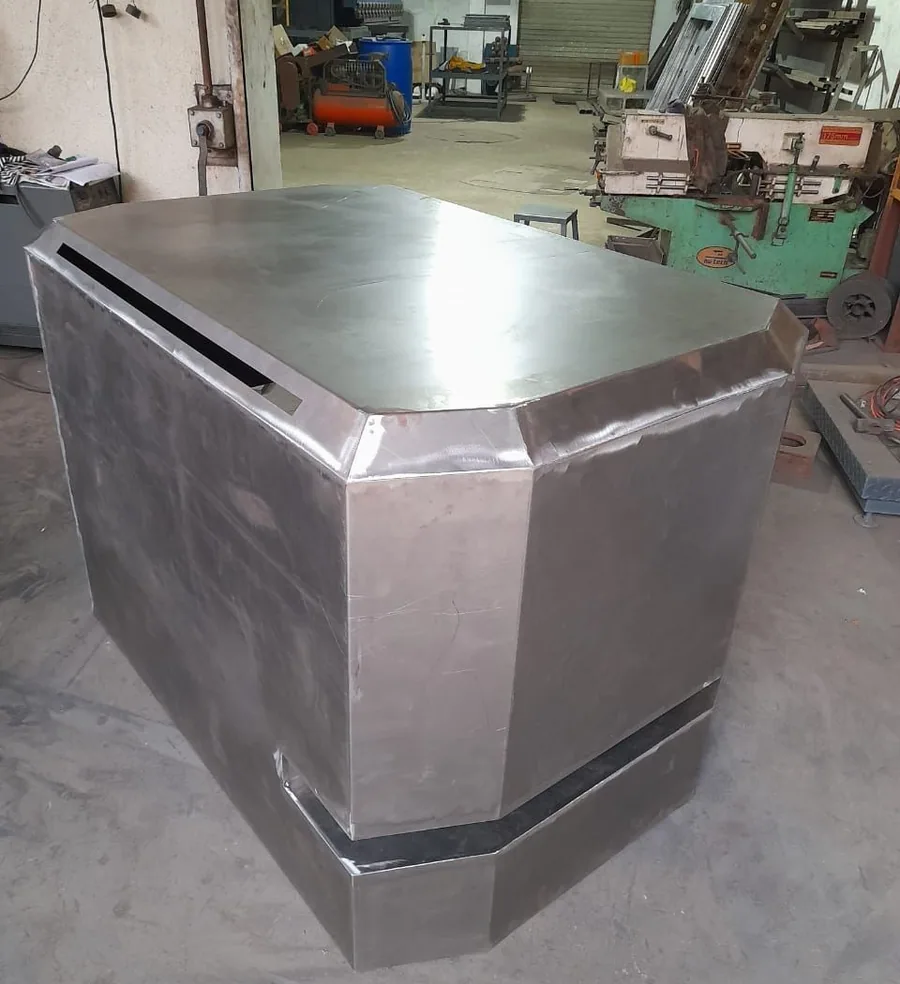

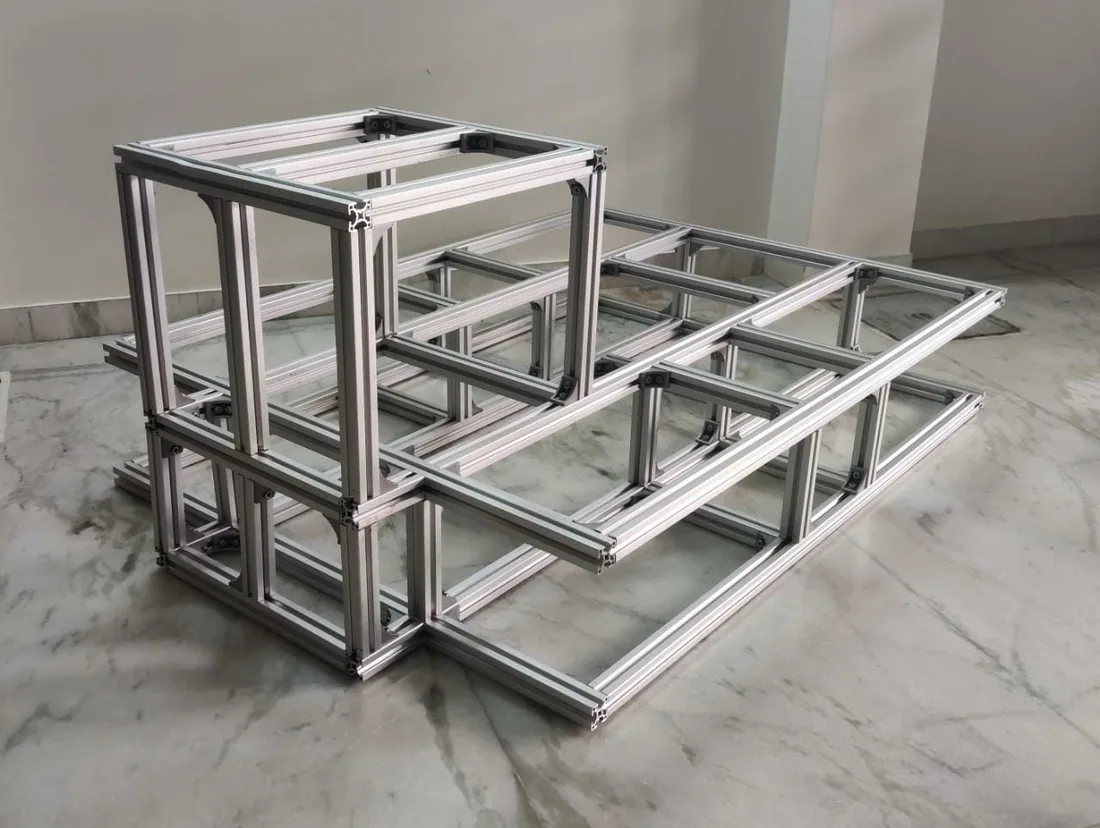

Process page →Project: Loop Warehouse Robot →

Mass Production

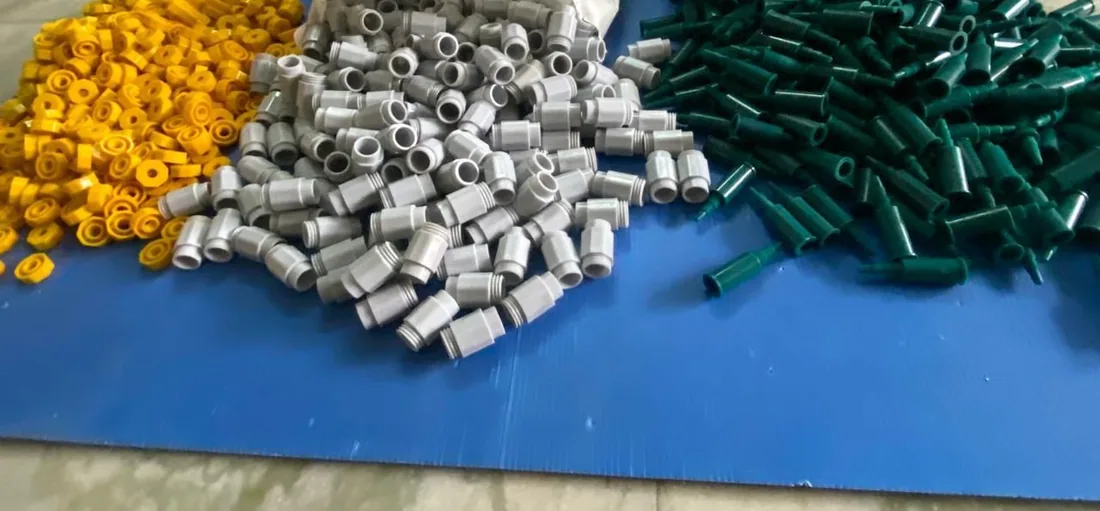

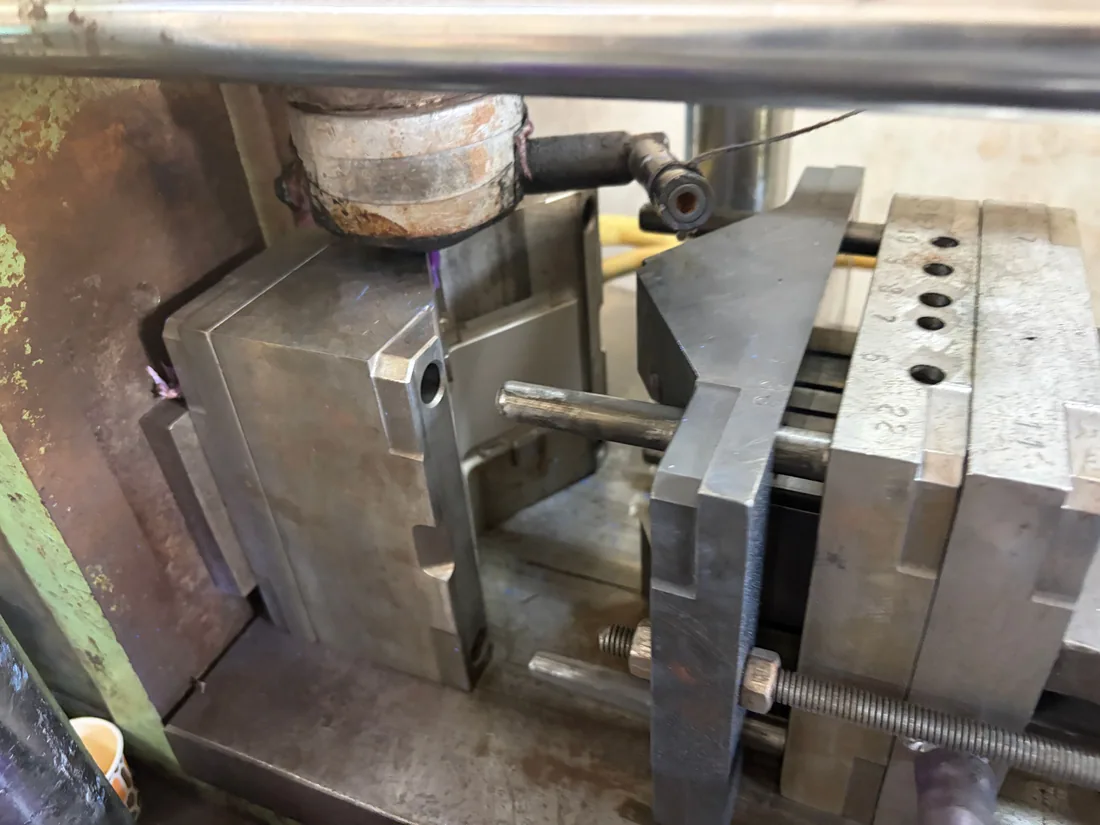

Injection Molding

ABS, PP, PC, PC/ABS, nylon PA6 and PA66, POM, TPE and TPU, silicone

Tolerance: ±0.10 to ±0.20 mm; precision ±0.025 to ±0.05 mm
Part size: From a few grams up to about 700 × 500 mm
Best-fit quantity: 500 to 100,000+ a year
Lead time: Samples: 4 to 8 weeks after design sign-off
Production: 2 to 4 weeks per run

Molds: Aluminum bridge or steel production molds, 1 to 8 cavities, family molds
Surface: Polished (SPI A/B), matte (SPI C/D) or textured (MT / VDI)
Extras: Threaded inserts, overmolding, pad printing, ultrasonic welding, assembly
Low volumes: Vacuum-cast parts (10 to 25) before you commit to a mold

Process page →Project: Hoofgrids, 30,000+ units →

Mass Production

Metal Casting

Zinc Zamak 3 and 5, aluminum ADC12 and A380, stainless steel (investment casting)

Tolerance: ±0.20 to ±0.50 mm as cast; precision ±0.05 to ±0.10 mm
Part size: Parts up to about 300 mm
Best-fit quantity: 1,000 to 50,000+
Lead time: Samples: 5 to 8 weeks after design sign-off
Production: 2 to 4 weeks per run

Processes: Zinc and aluminum die casting, stainless steel investment casting
Dies: H13 hot-work steel, owned by you
Machining: Critical holes and faces machined after casting
Finishes: As cast, powder coat, plating, anodizing (aluminum), PVD

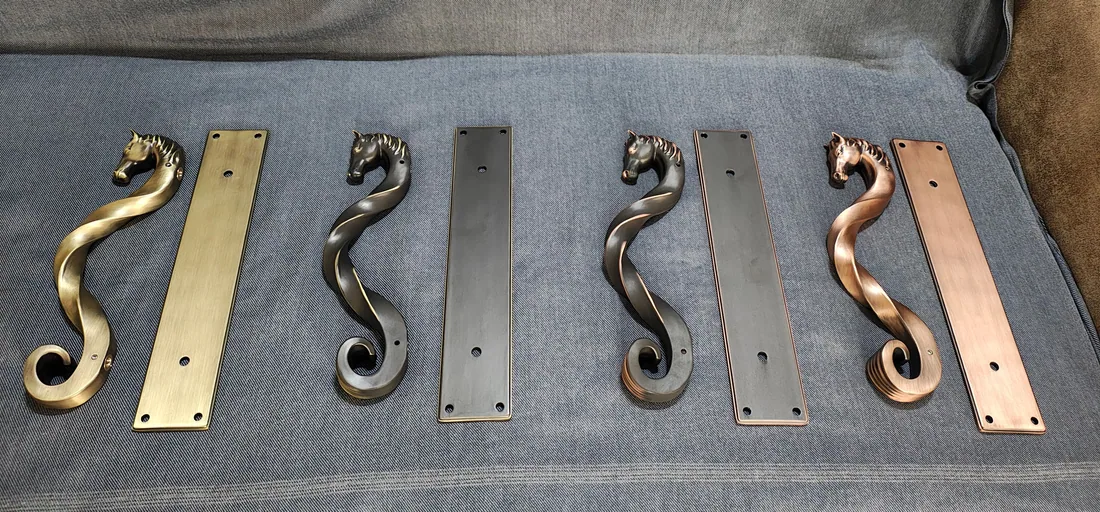

Process page →Project: Horse Head Handle, 4,000+ units →

Mass Production

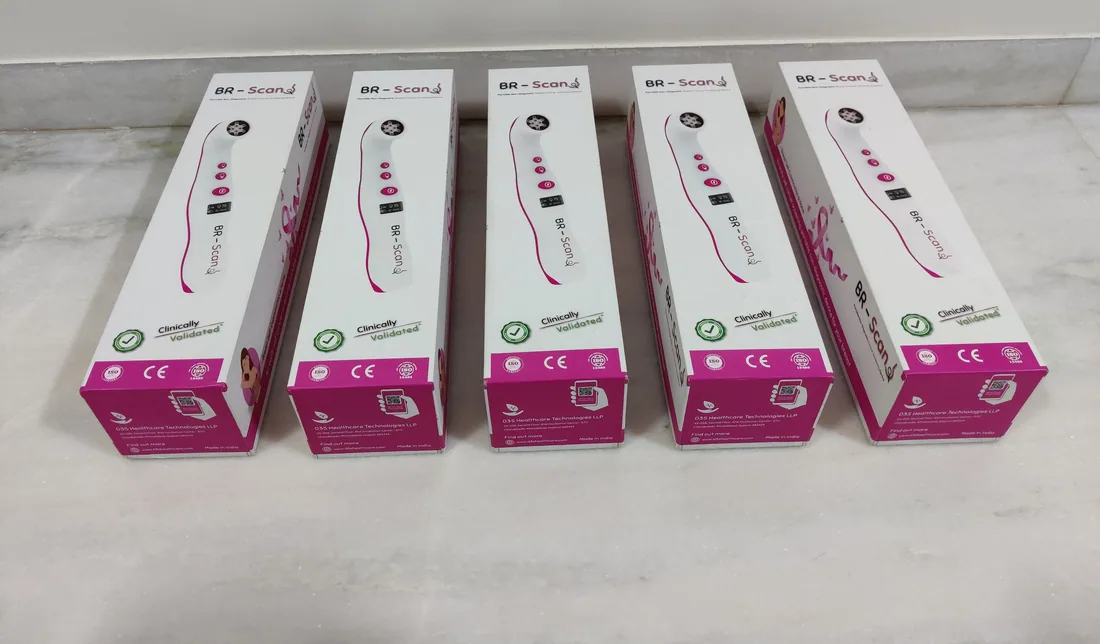

Product Packaging

Corrugated E-flute, kraft board, SBS board, rigid greyboard

Tolerance: Made to your dieline
Part size: Mailer boxes, rigid two-piece boxes, folding cartons, sleeves
Best-fit quantity: 500 to 50,000 boxes
Lead time: Samples: 7 to 10 working days
Production: 15 to 20 working days

Printing: Unprinted, outside only, or outside and inside

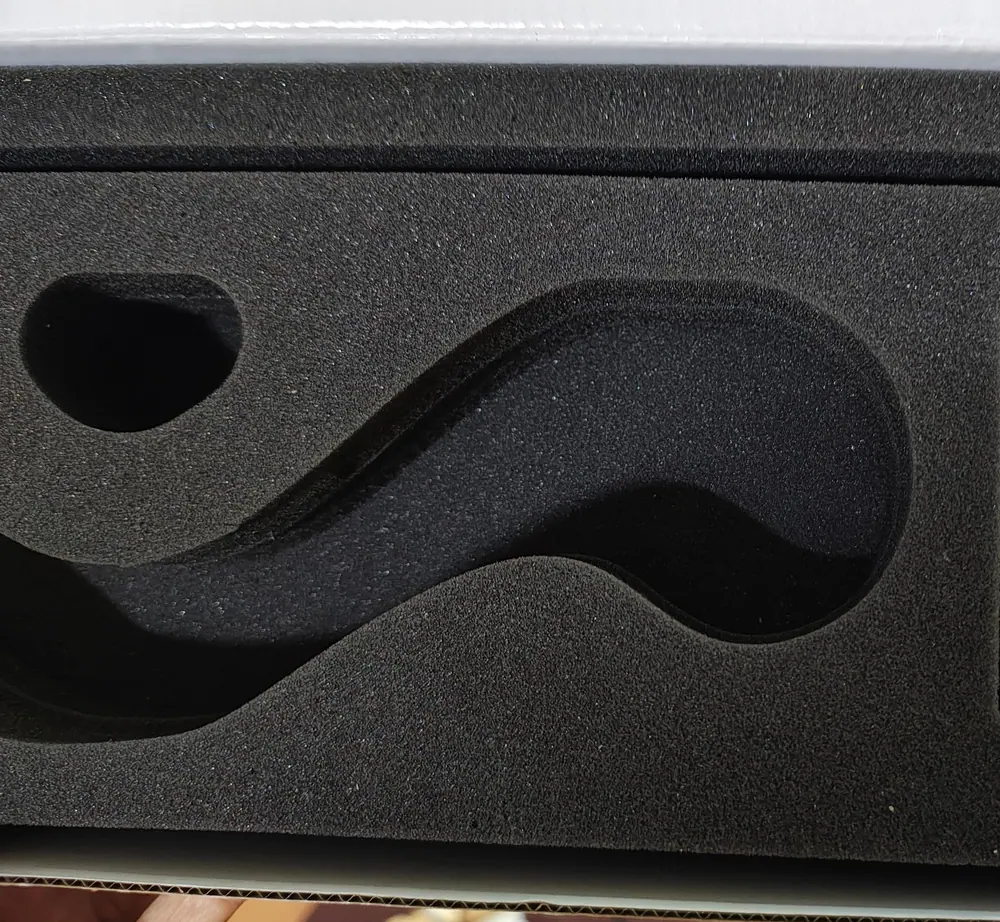

Inserts: Cardboard, foam or molded pulp

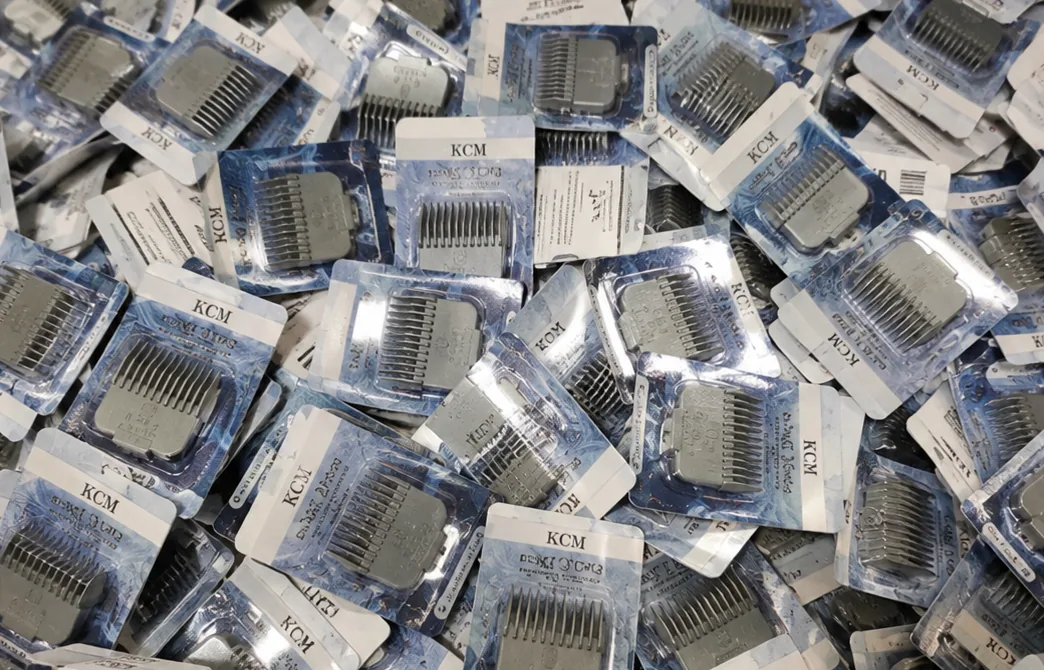

Also: Blister packs, printed inserts and thank-you cards, fulfillment

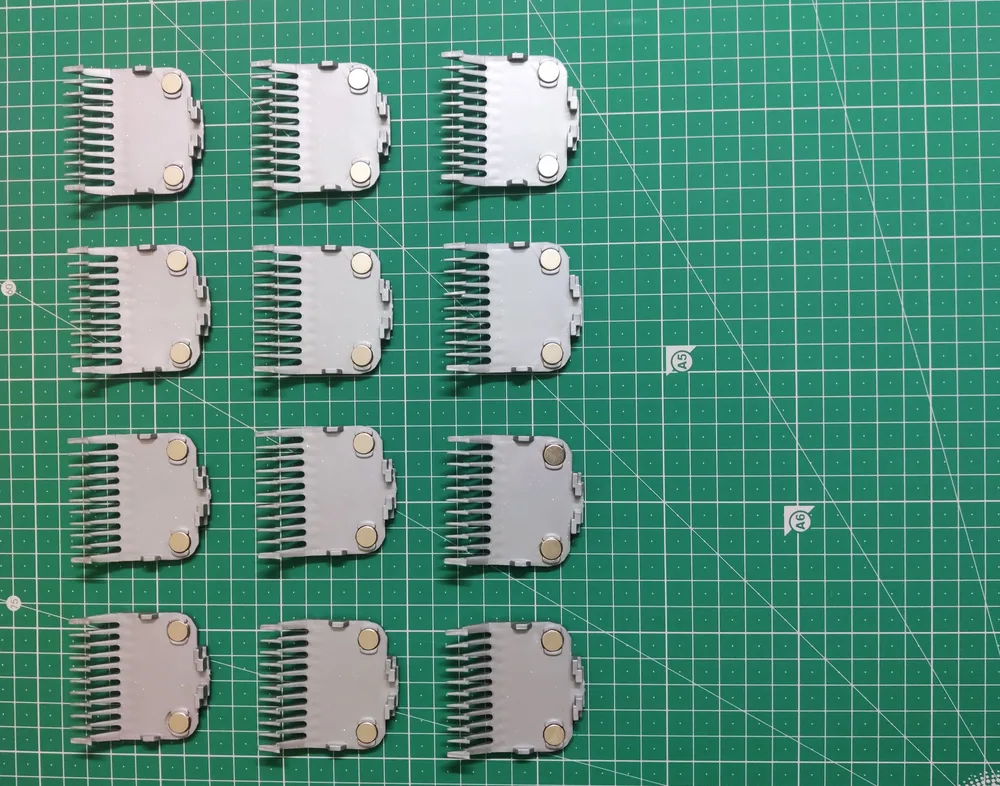

Process page →Project: Magnetic Trimmer Guards →

PCB & Box Build

PCB Fabrication

FR-4, 1 to 32 layers (aluminum core and flex on request)

Tolerance: Board outline ±0.2 mm; 0.1 mm (4 mil) trace and gap
Part size: Boards from 3 × 3 mm up to about 600 × 670 mm
Best-fit quantity: 5 to 100,000+ boards
Lead time: Samples: 5 to 10 working days
Production: 1 to 3 weeks

Thickness: 0.4 to 2.0 mm (up to 4.5 mm on request)
Copper: 1 to 2 oz outer, 0.5 to 2 oz inner (3 oz on request)
Smallest drill: 0.25 mm (0.15 mm on request)
Annular ring: 0.2 mm minimum
Surface finish: Lead-free or leaded HASL, ENIG, OSP or immersion tin

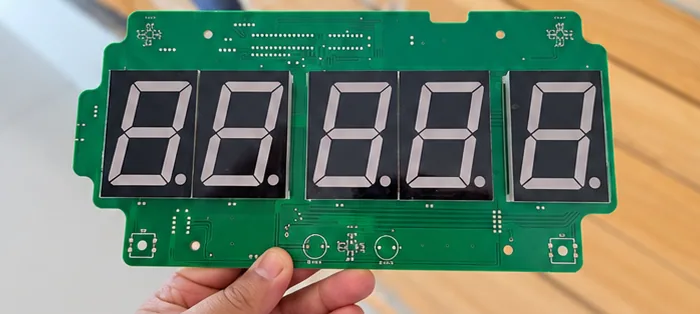

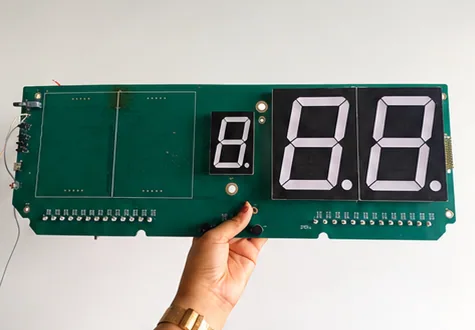

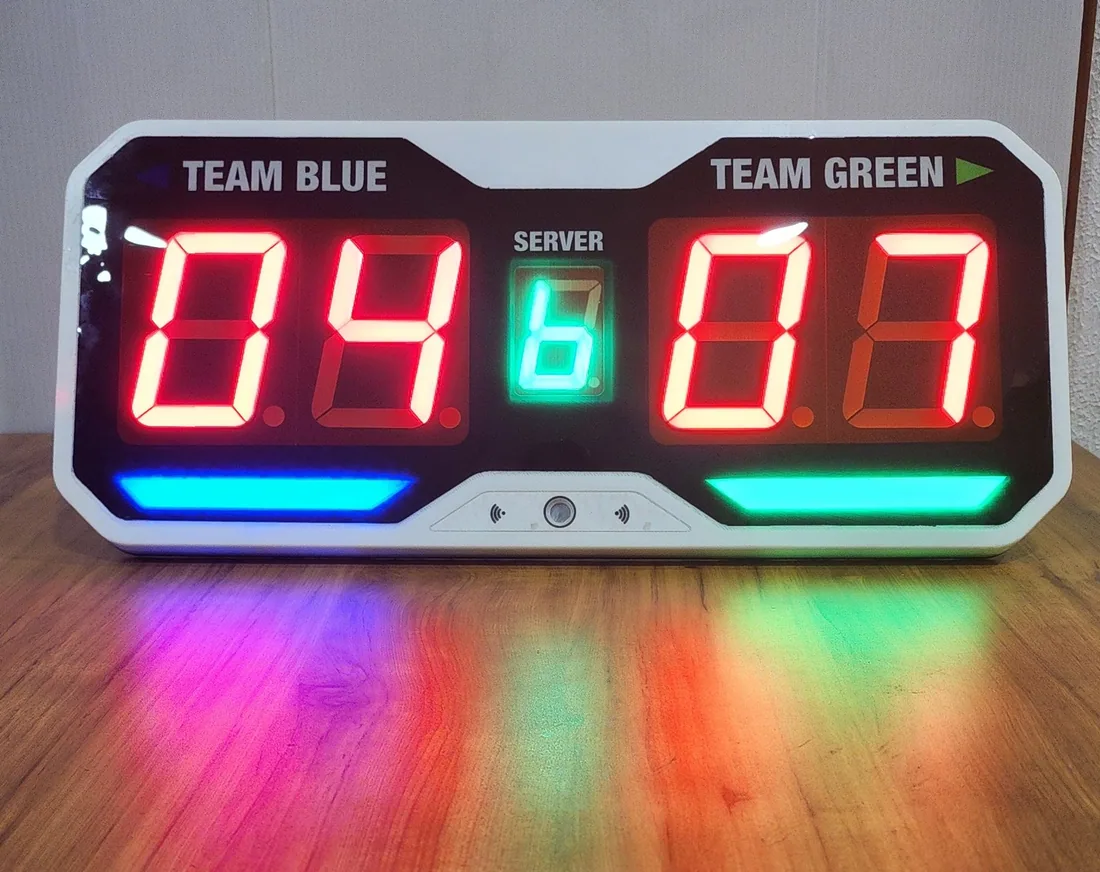

Process page →Project: Pickleball Scoreboard V2 →

PCB & Box Build

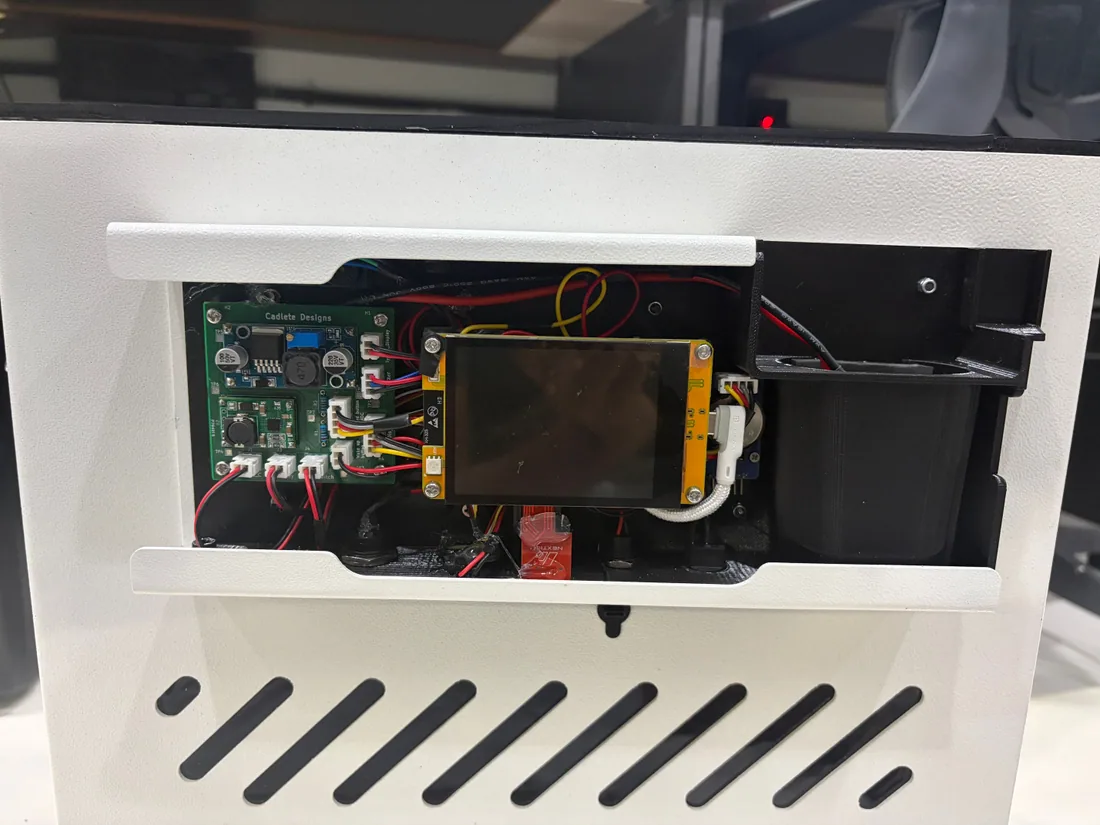

PCB Assembly & Box Build

SMT and through-hole, one or both sides, BGA and fine pitch

Tolerance: Built and tested to your drawing and test plan
Part size: Parts down to 0402; enclosures, harnesses and packaging
Best-fit quantity: 10 to 100,000+ boards; box build from 1 unit
Lead time: Samples: 2 to 3 weeks including parts
Production: 3 to 6 weeks

Parts: Turnkey (we source the BOM), consigned or a mix
Testing: Automated optical inspection (AOI) and functional testing
Firmware: Loaded and checked before shipping
Box build: PCBA, enclosure, cable harness, test, packaging and fulfillment

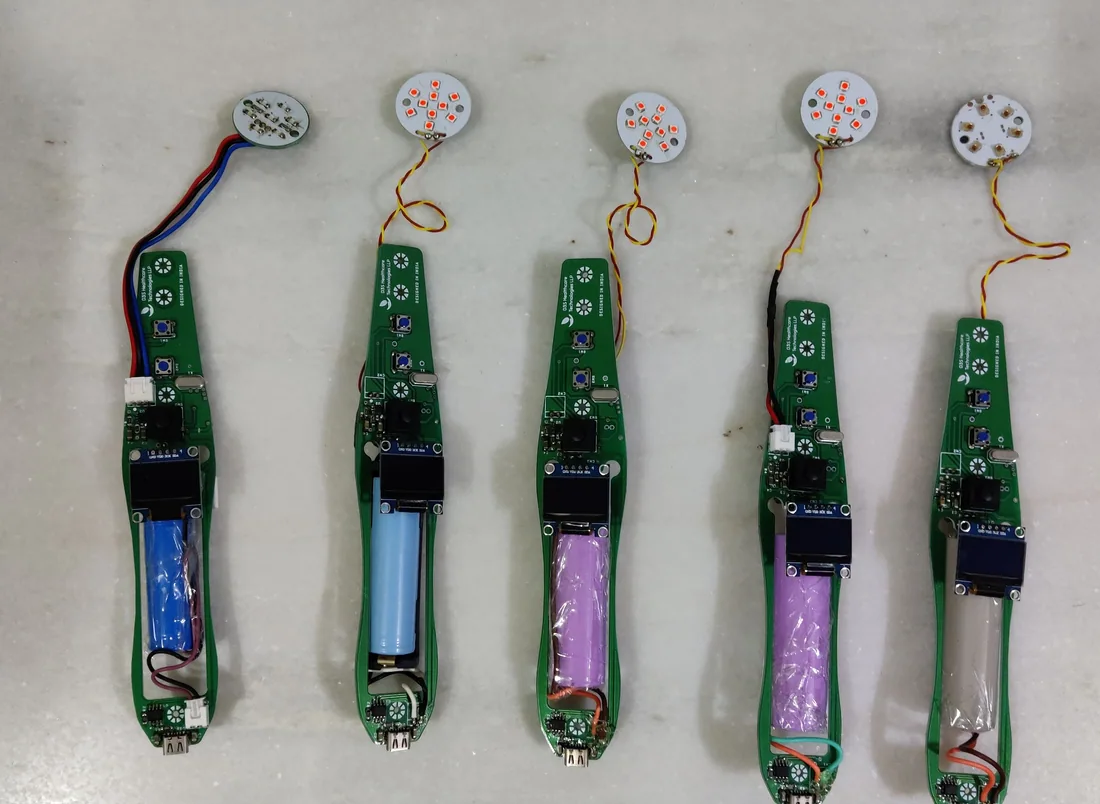

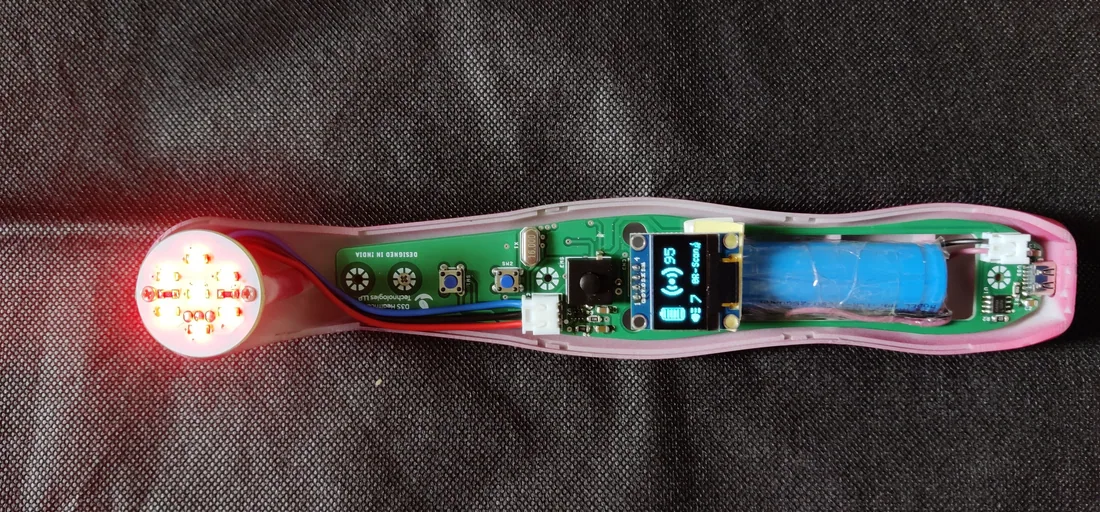

Process page →Project: BR-Scan medical device →

Tooling

Who Builds the Mold, and Who Owns It?

Molds and die-casting dies are designed with your part, built for your volume and yours from day one.

Mold steels

Aluminum for bridge molds. P20 or 718H for most production. NAK80 for a high polish. H13 for high volumes and glass-filled plastics. S136 stainless for clear and medical parts.

Mold life (typical)

Aluminum: tens of thousands of shots. P20 and 718H: about 300,000 to 500,000. H13 and S136: up to about 1,000,000.

Cavities and presses

1, 2, 4 or 8 cavities, or a family mold that makes several parts in one shot. Presses of about 50 to 500 tonnes, matched to your part.

Lead time to first samples

Bridge mold: 2 to 3 weeks. Steel mold: 4 to 8 weeks. Die-casting die: 5 to 8 weeks. Counted from design sign-off.

First sample approval

You see the first parts on video, then receive physical samples to approve before any production run.

Ownership

You own the mold or die from day one, with a mold passport: photos, steel, cavities, shot count and the right to move it.

Tooling we have built

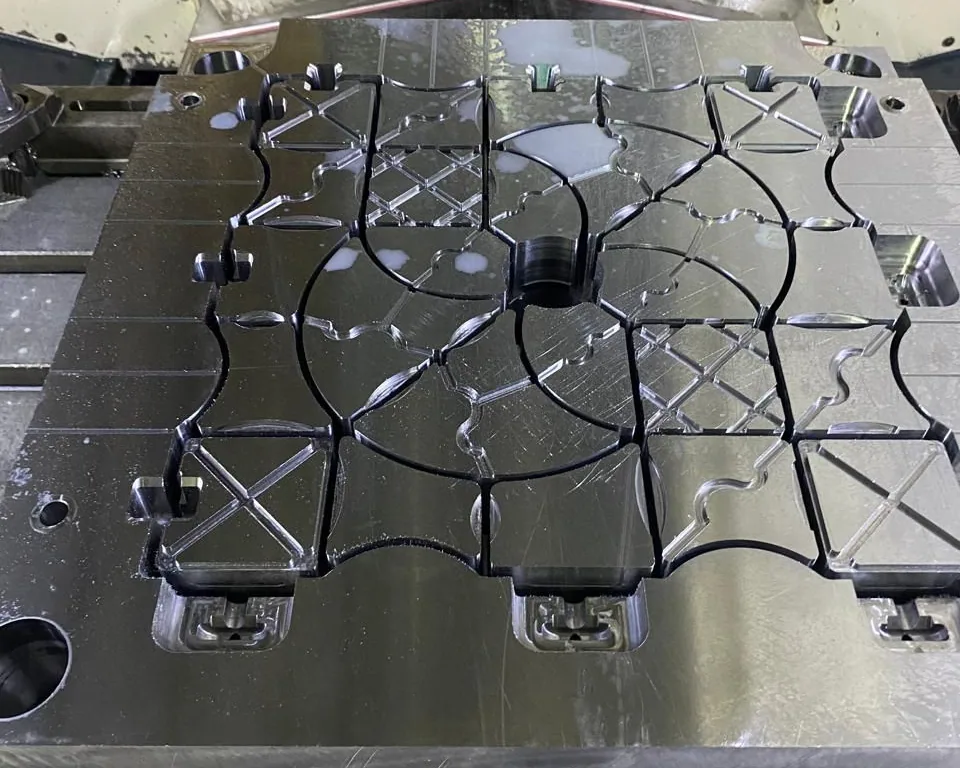

Injection moldsHoofgridsMolds for recycled plastic ground grids. 30,000+ units shipped to the USA in 40 ft containers.Read the project story →

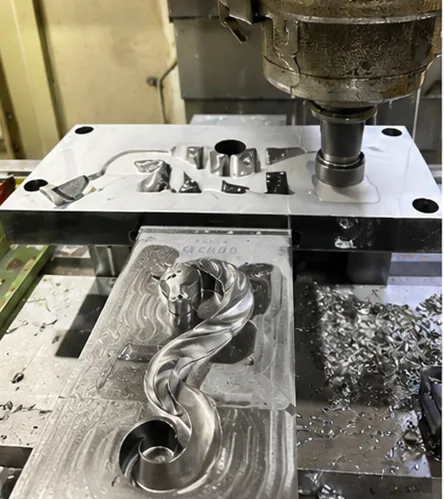

Zinc die-casting dieHorse Head HandleIn-house tooling for a sculpted door handle. 4,000+ units, PVD coated and delivered to the USA.Read the project story →

Injection moldGrip-Free Fitness CuffMolds designed, machined and run by CADLETE. The product now sells in 27+ countries.Read the project story →

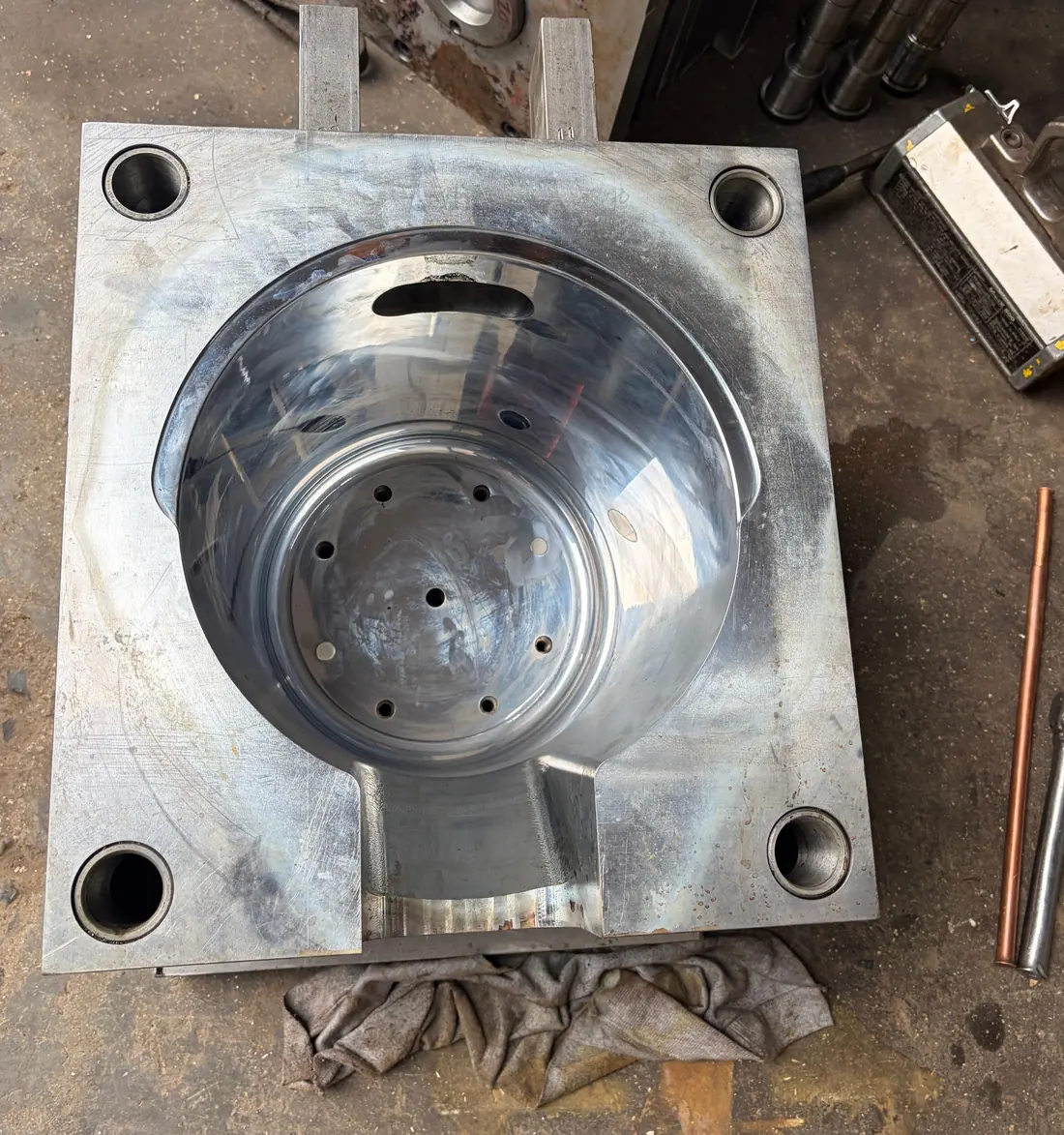

Overmolding moldPet Feeder BowlA steel plate overmolded into the base as a dead weight, with the logo pad printed in-house.Read the project story →

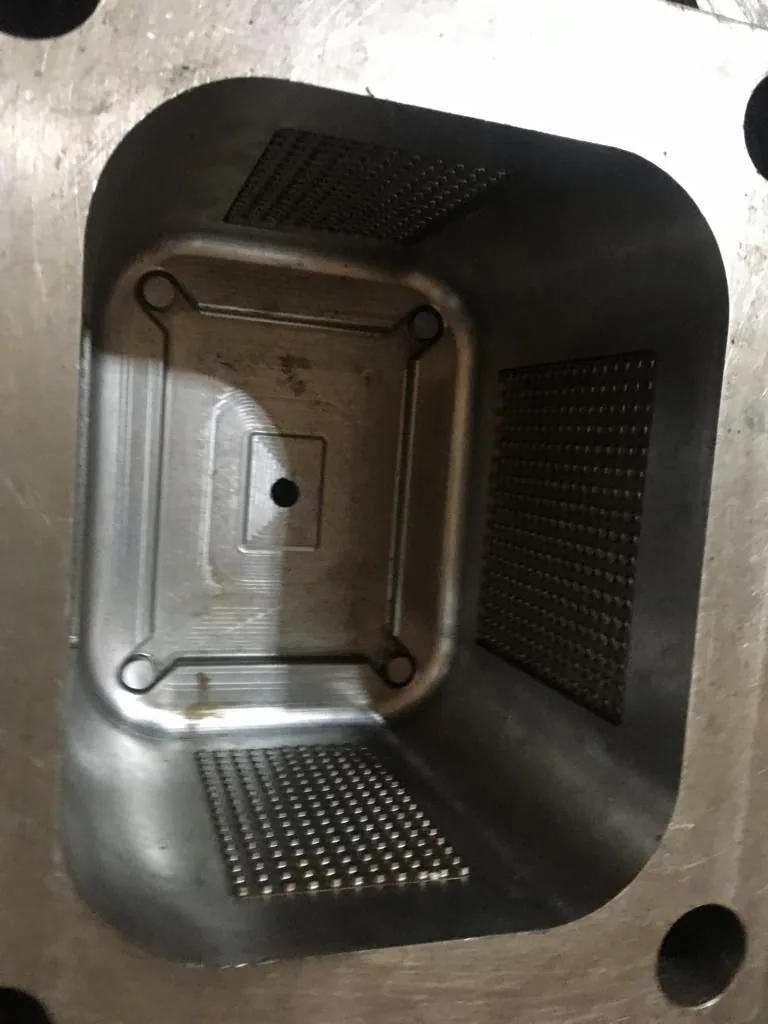

Production moldAir PurifierA production mold for the purifier body. The product has launched and its next generation is designed.Read the project story →

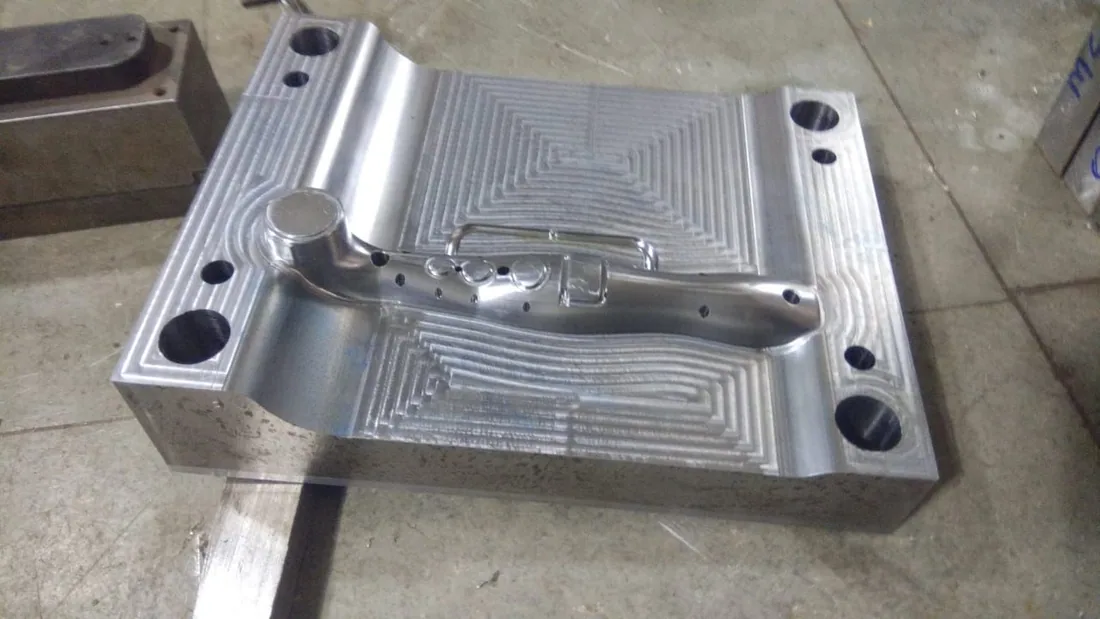

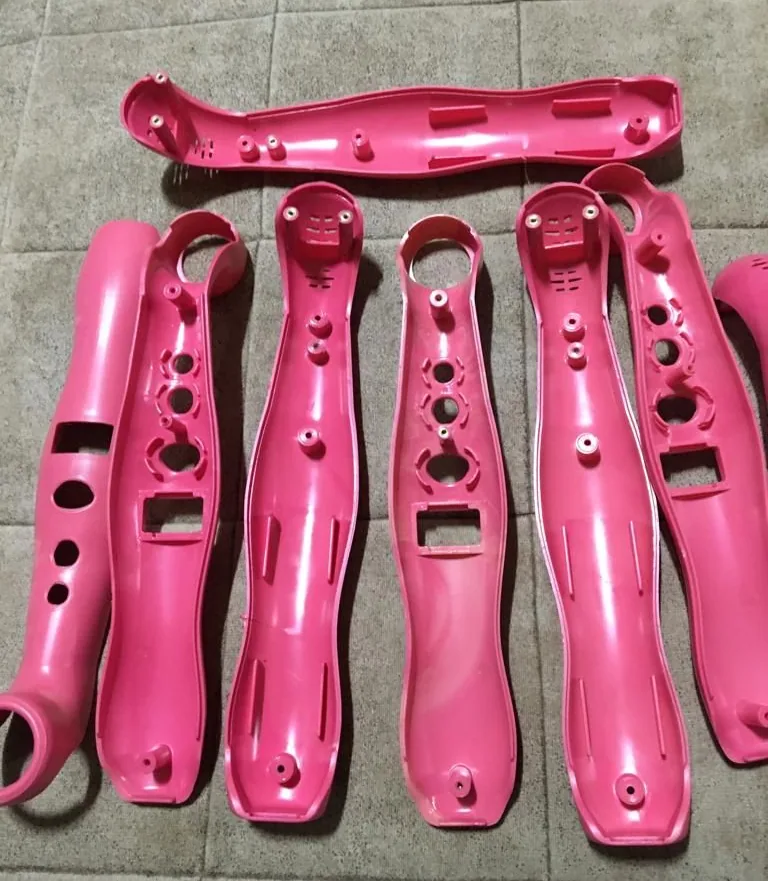

Medical housing moldBR-ScanMolds for an AI breast screening device. CADLETE supported its CDSCO and ISO 13485 certification.Read the project story →

How mold ownership works →

Quality

How Will I Know the Parts Are Right?

Every order is checked against your drawing before it ships. Choose the inspection level and the documents your own quality process needs.

Inspection levels

Standard check

Parts checked against your drawing before packing. Included with every order.

Sample report

A measured report on a sample of the parts from each batch.

Full report

Every part measured, for critical or safety parts.

Reports beyond the standard check are quoted as a separate line.

Documents on request

Certificate of conformance
Material certificate
Dimensional inspection report
First article inspection report
RoHS and REACH declaration

Certified quality systems

First sample approval

You approve the first parts on video, then as physical samples, before production starts.

Electronics testing

Assembled boards go through automated optical inspection and functional tests, with firmware checked.

See the photos and reports you get at each stage →

Our Team

Who Will I Be Working With?

One team across three offices. The engineer who reviews your design follows your parts through production to delivery.

Design Studio

Ahmedabad, Gujarat, India

Product design, engineering, DFM review and quotations.

Production House

Rajkot, Gujarat, India

Our production base in Rajkot, one of India’s main engineering and casting centers.

European Branch

Ludwigsburg, Germany

A local contact for European clients, with face-to-face meetings when needed.

Production and Shipping

Can You Ship a Full Production Run?

Real production batches from CADLETE projects, packed and shipped to clients in 18+ countries.

900+

Express air shipments

36+

Sea containers (40 ft)

54+

Part-load sea shipments

18+

Countries delivered to worldwide

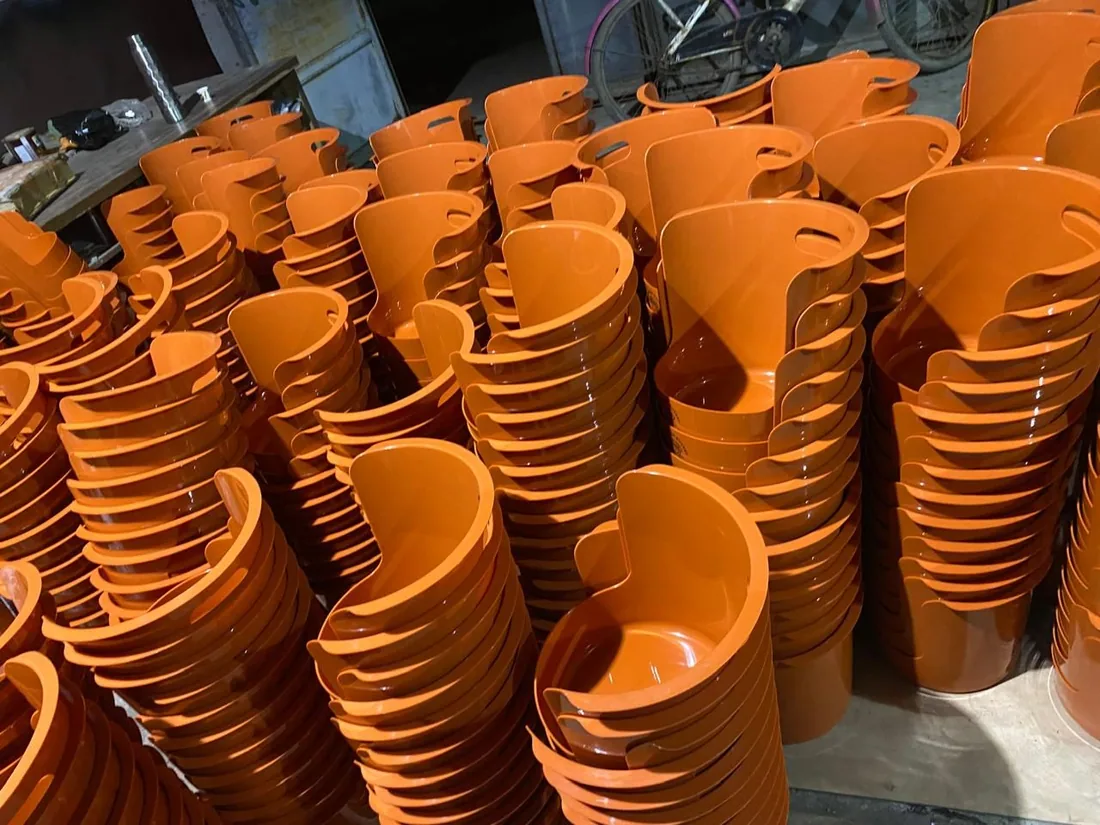

Injection-molded dog feeder bowls after a production run

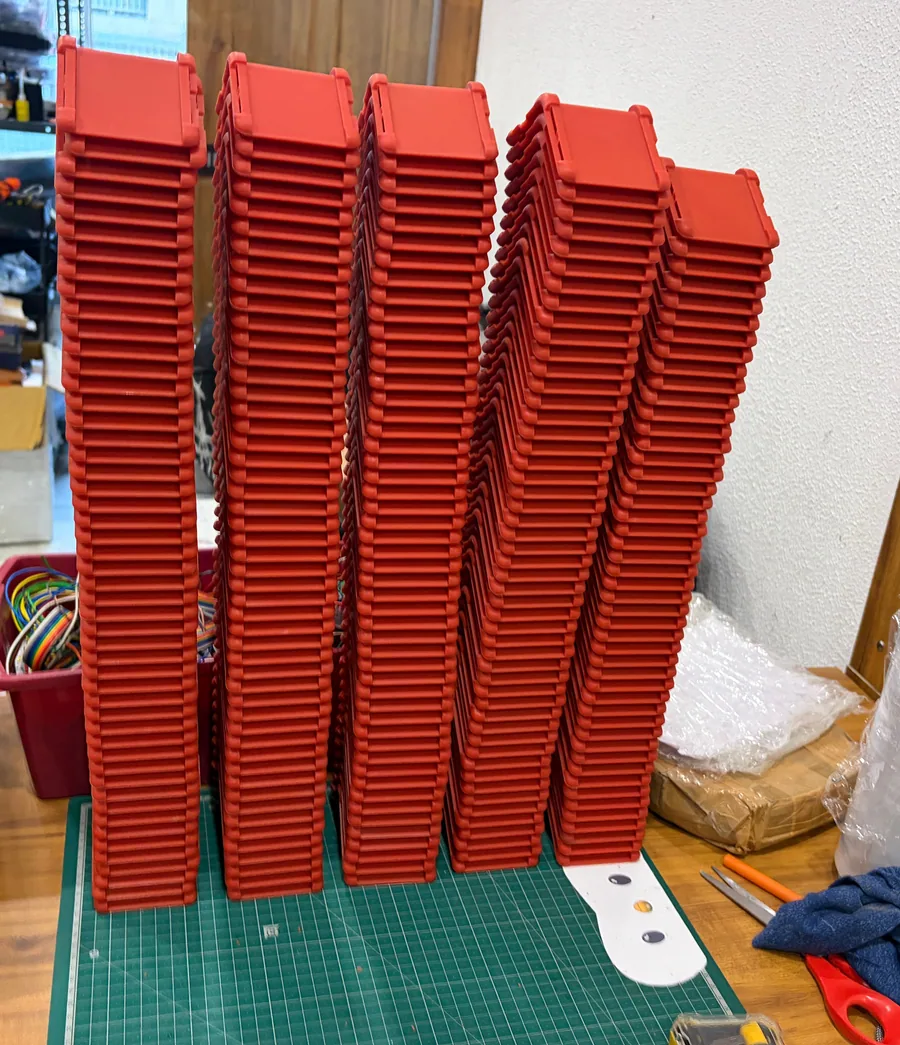

Molded fitness cuffs stacked after production

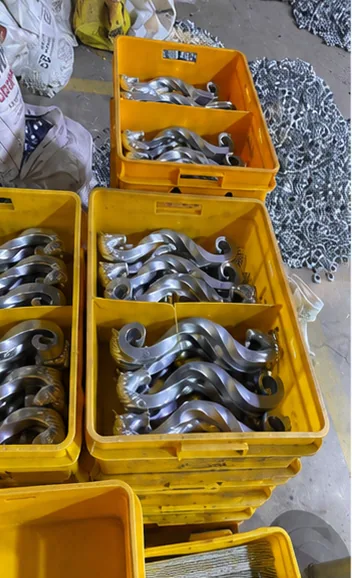

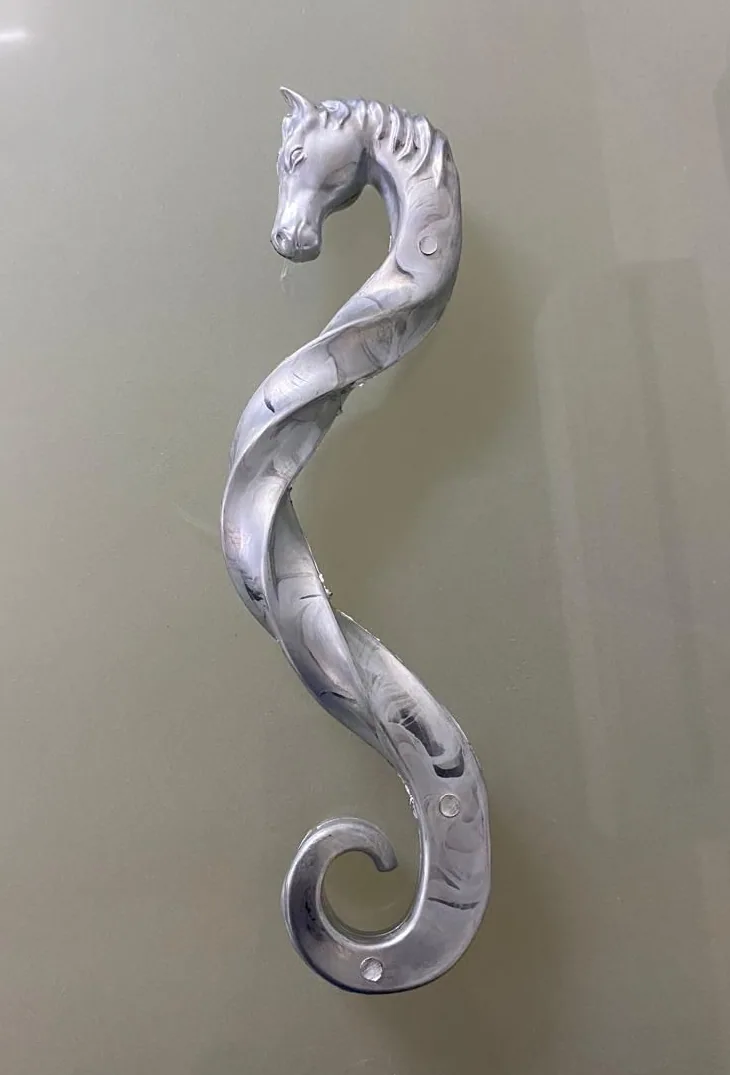

Zinc die-cast handles in crates

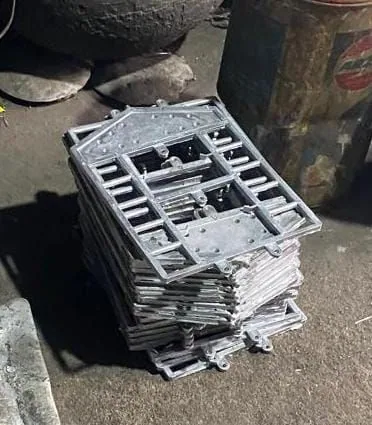

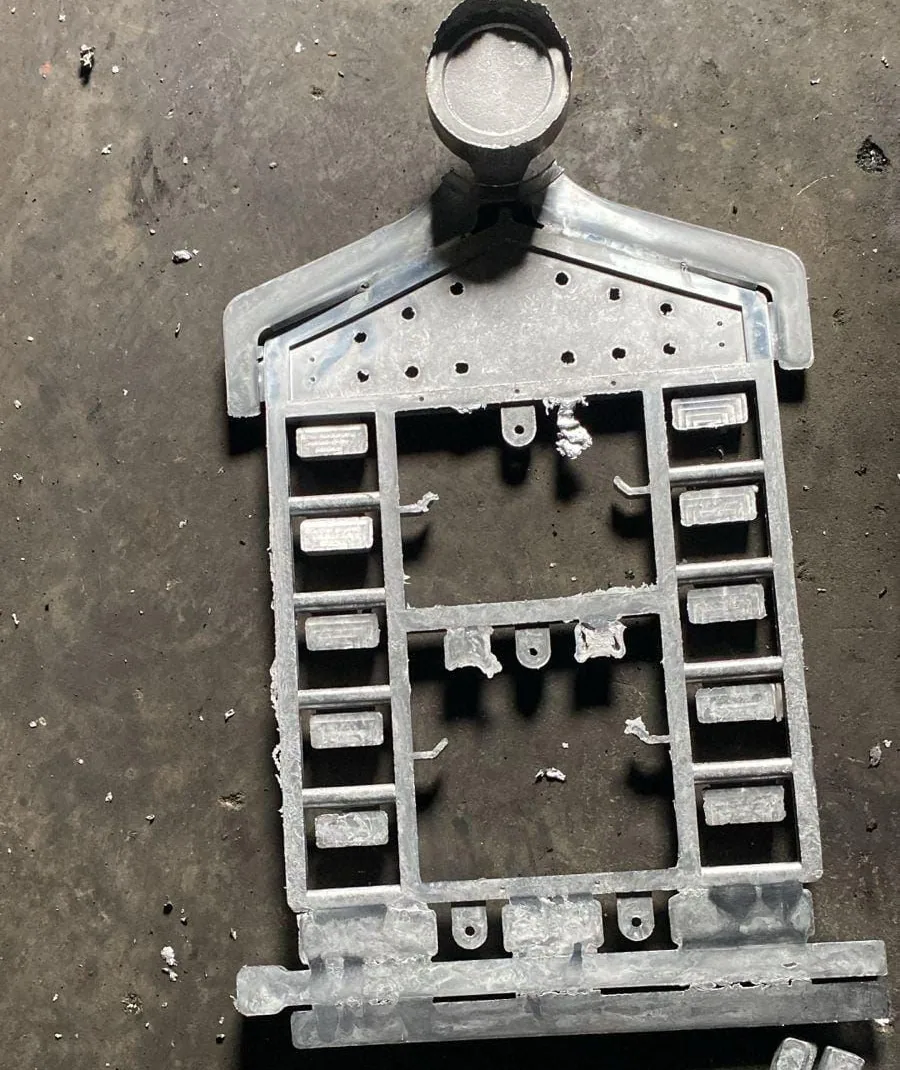

Aluminum die-cast panels stacked after casting

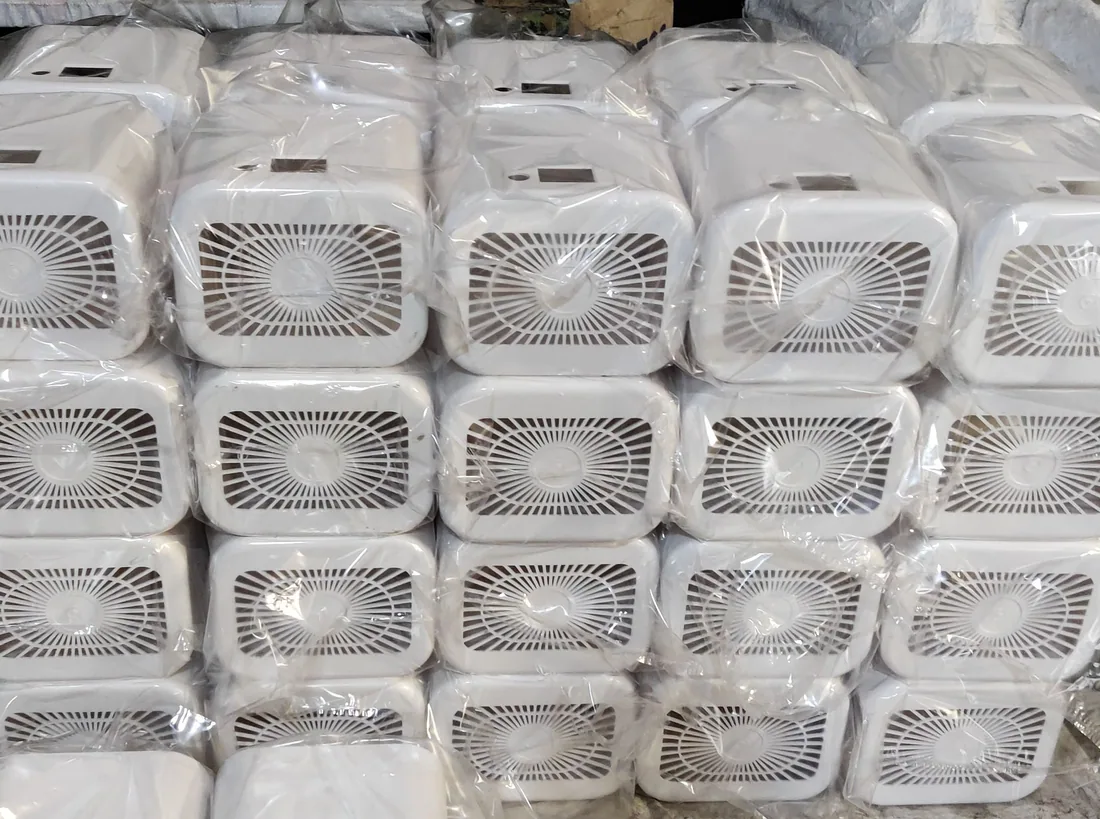

Air purifiers wrapped after a production run

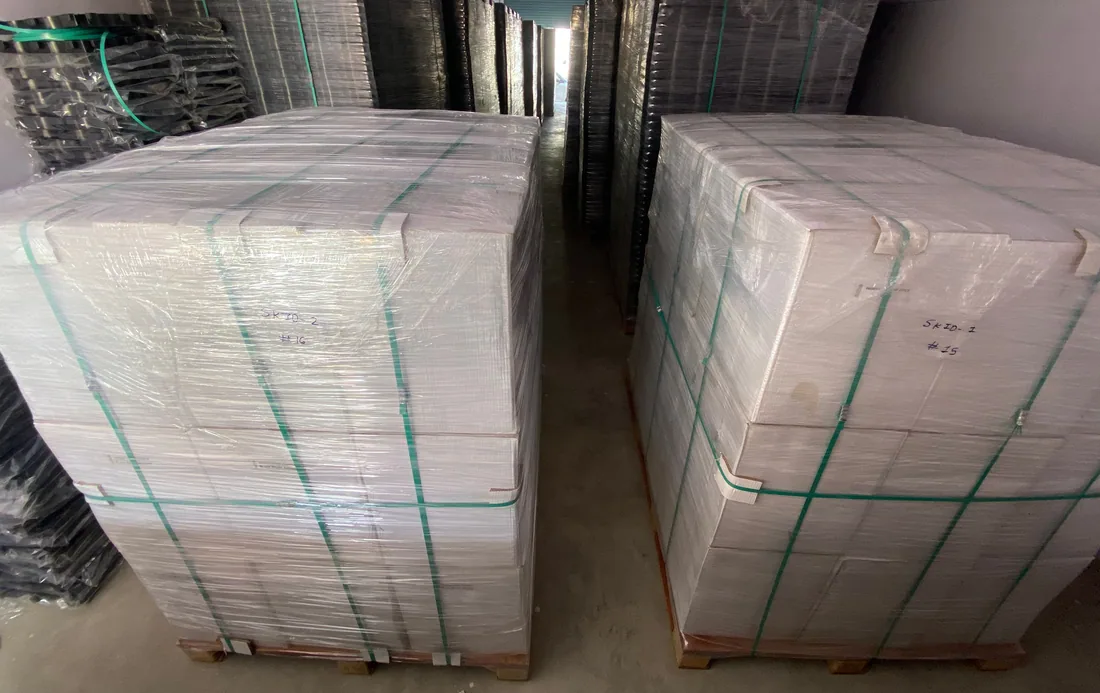

Molded ground grids palletized for export

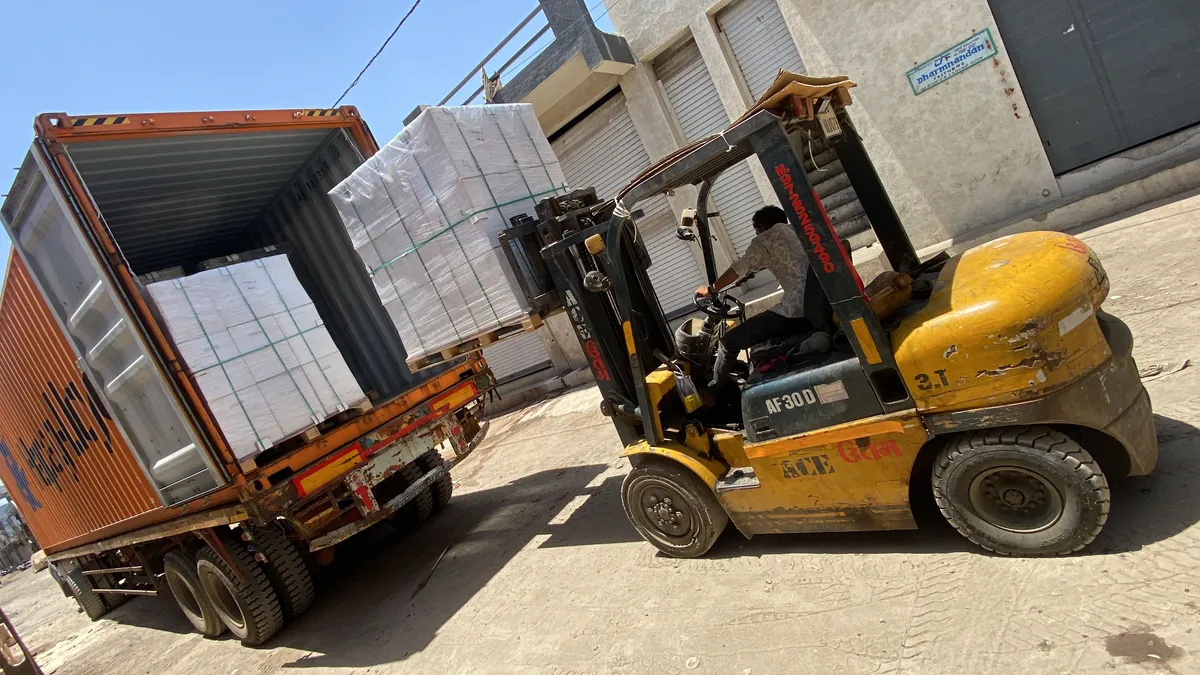

Forklift loading carton pallets into a 40 ft container

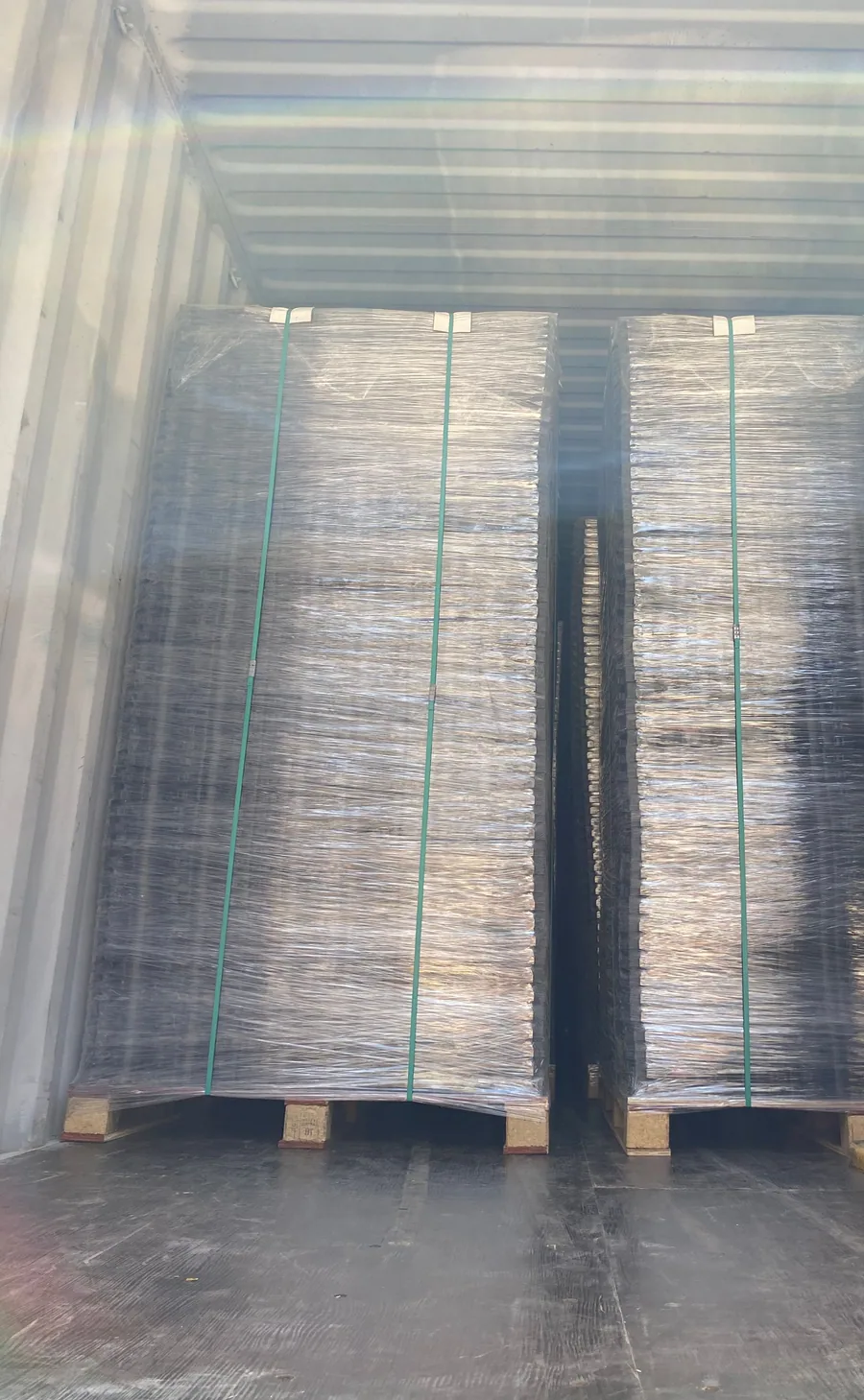

A loaded 40 ft container ready to ship to the USA

Shipping terms

EXW, FOB, CIF, DAP or DDP. With DDP, the price includes freight, customs and import duty to your door.

How it ships

Samples go by express air. Production goes by air, part-load sea freight or a full 40 ft container, palletized or packed for retail.

FAQ'S

Questions About Our Manufacturing Capabilities

What tolerance can you hold?

Standard tolerances are ±0.05 to ±0.13 mm for CNC machining, ±0.10 to ±0.20 mm for injection molding, ±0.20 to ±0.50 mm for casting and ±0.25 to ±0.50 mm for sheet metal. Precision tiers go tighter, down to ±0.0025 mm on high-precision VMC machining. Tighter tolerances cost more to hold, so mark only the features that need them on your drawing.

Is there a minimum order quantity?

No. We make single prototypes, small batches and full production runs. The best-fit quantities on this page show where each process gives the best price per part, not a minimum.

How fast will I get a quote?

Within 24 hours. Send your 3D model or drawing with the material, quantity and any critical tolerances, and an engineer reviews it for manufacturing before quoting.

How long until I receive first samples?

Typically 3 to 5 working days for 3D printing, 7 to 10 working days for CNC and sheet metal, 5 to 10 working days for bare PCBs, 4 to 8 weeks for injection-molded parts and 5 to 8 weeks for die castings, counted from design sign-off. Your quote gives the date for your part.

Who owns the mold?

You do, from day one. Every mold and die we build for you comes with a mold passport recording its steel, cavities, photos and shot count, and the written right to move it.

What inspection reports do I get?

Every order gets a standard check against your drawing before packing. Measured reports on a sample or on every part, first article inspection reports, material certificates, certificates of conformance and RoHS or REACH declarations are available on request.

Which files do you need?

STEP, IGES or STL for 3D parts, DXF for flat sheet metal and laser cutting, Gerber files and a BOM for PCBs, plus a PDF drawing for any tolerances, threads or finishes. If you only have a sketch or a sample, our engineers can model it first.

How do you ship?

Samples go by express air. Production goes by air, part-load sea freight or full 40 ft containers, on EXW, FOB, CIF, DAP or DDP terms. With DDP, the price includes freight, customs and import duty to your door.

Client Reviews

Trusted By Product Companies Worldwide

Verified reviews from clients in USA, UK, Germany, Australia, Canada and more.

Javier Campos

14 October 2025

Google

★★★★★

Very good professional, exhaustive and detailed work with great follow-up on the proposed revisions and always willing to make the requested modifications. In addition, a proactive attitude to follow the steps of the project. If you have the opportunity, I recommend working with him, you won't be disappointed.

Verified Google Review

Bells Leonberger

5 October 2025

Google

★★★★★

Working with Cadlete Designs has been a real pleasure. They helped with so many design aspects I hadn't considered and offered many suggestions that I would have never thought of. Professional, prompt, and always willing to go the extra mile. I was extremely lucky to have found them! (Patent Pending)

Verified Google Review

Abdul Haseeb

17 September 2025

Google

★★★★★

Great experience working with Cadlete Designs team, they were professional with quick turnaround times and providing detailed explanations with each iteration. Will work with them again in the future.

Verified Google Review

Fernando Rodriguez

9 September 2025

Google

★★★★★

Working with Smit and the Cadlete Designs team has been amazing. They are extremely diligent, professional, and always willing to go the extra mile. Every detail of our project was handled with care and creativity. Highly recommended!

Verified Google Review

Doughty Build

11 July 2025

Google

★★★★★

These guys are simply the best. They are professional and on time with the orders and take great care in understanding what it is you want done. They offer revisions on the product if it is off and they are so pleasant to work with, I would 10/10 recommend them to anybody looking for designs drawn up.

Verified Google Review

Will YIM

11 July 2025

Google

★★★★★

I had a great experience working with CADLETE Designs. Smit was professional, responsive, and very patient throughout the process. The 3D model was beautifully done and exactly what I needed. Highly recommend their team for any custom design work, they are talented and reliable!

Verified Google Review

Melvin Mathew

2 June 2025

Google

★★★★★

I've worked with CADLETE Design for several years, and every project has been exceptional. Their meticulous attention to detail, quick turnaround times, and consistently professional, helpful, and kind service make them a standout partner.

Verified Google Review

Okan Anter

26 May 2025

Google

★★★★★

I have been getting a ton of design work done. Engineered specs, renderings for the past 3 years with them. The best thing about them is that they come back quickly and with great work quality. I really appreciate all the work they done for us and continue to do.

Verified Google Review

Aaron Ellison

26 May 2025

Google

★★★★★

Cadlete Designs staff are very professional and will go above and beyond to build and deliver a great product! They built my custom mechanics creeper board for my company and I have nothing but the utmost respect for this company. Special recognition to Smit!

Verified Google Review

Steven Smith

26 May 2025

Google

★★★★★

I've been collaborating with CADLETE Design for several years, and it's been a truly great experience. Their attention to the specific details of each project is outstanding. Deliveries are always fast, and they are consistently helpful, professional, and kind.

Verified Google Review

Javier Campos

14 October 2025

Google

★★★★★

Verified Google Review

Bells Leonberger

5 October 2025

Google

★★★★★

Verified Google Review

Abdul Haseeb

17 September 2025

Google

★★★★★

Verified Google Review

Fernando Rodriguez

9 September 2025

Google

★★★★★

Verified Google Review

Doughty Build

11 July 2025

Google

★★★★★

Verified Google Review

Will YIM

11 July 2025

Google

★★★★★

Verified Google Review

Melvin Mathew

2 June 2025

Google

★★★★★

Verified Google Review

Okan Anter

26 May 2025

Google

★★★★★

Verified Google Review

Aaron Ellison

26 May 2025

Google

★★★★★

Verified Google Review

Steven Smith

26 May 2025

Google

★★★★★

Verified Google Review

Ready to Start?

Send Your Drawing, Get a Quote in 24 Hours

Tell us the part, material and quantity. An engineer checks it for manufacturing and replies within 24 hours.

Try us for one batch →

Can You Make My Part? Our Manufacturing Capabilities

What Can You Make, and How Fast?

How Precise Can You Go, and What Finishes Do You Offer?

3D Printing

CNC Machining

Sheet Metal Fabrication

Injection Molding

Metal Casting

Product Packaging

PCB Fabrication

PCB Assembly & Box Build

Who Builds the Mold, and Who Owns It?

Mold steels

Mold life (typical)

Cavities and presses

Lead time to first samples

First sample approval

Ownership

Tooling we have built

How Will I Know the Parts Are Right?

Standard check

Sample report

Full report

Documents on request

Certified quality systems

First sample approval

Electronics testing

Who Will I Be Working With?

Ahmedabad, Gujarat, India

Rajkot, Gujarat, India

Ludwigsburg, Germany

Can You Ship a Full Production Run?

Shipping terms

How it ships

Questions About Our Manufacturing Capabilities

Trusted By Product Companies Worldwide

Send Your Drawing, Get a Quote in 24 Hours

Talk to a real engineer

Parts & Enclosures

Electronics
