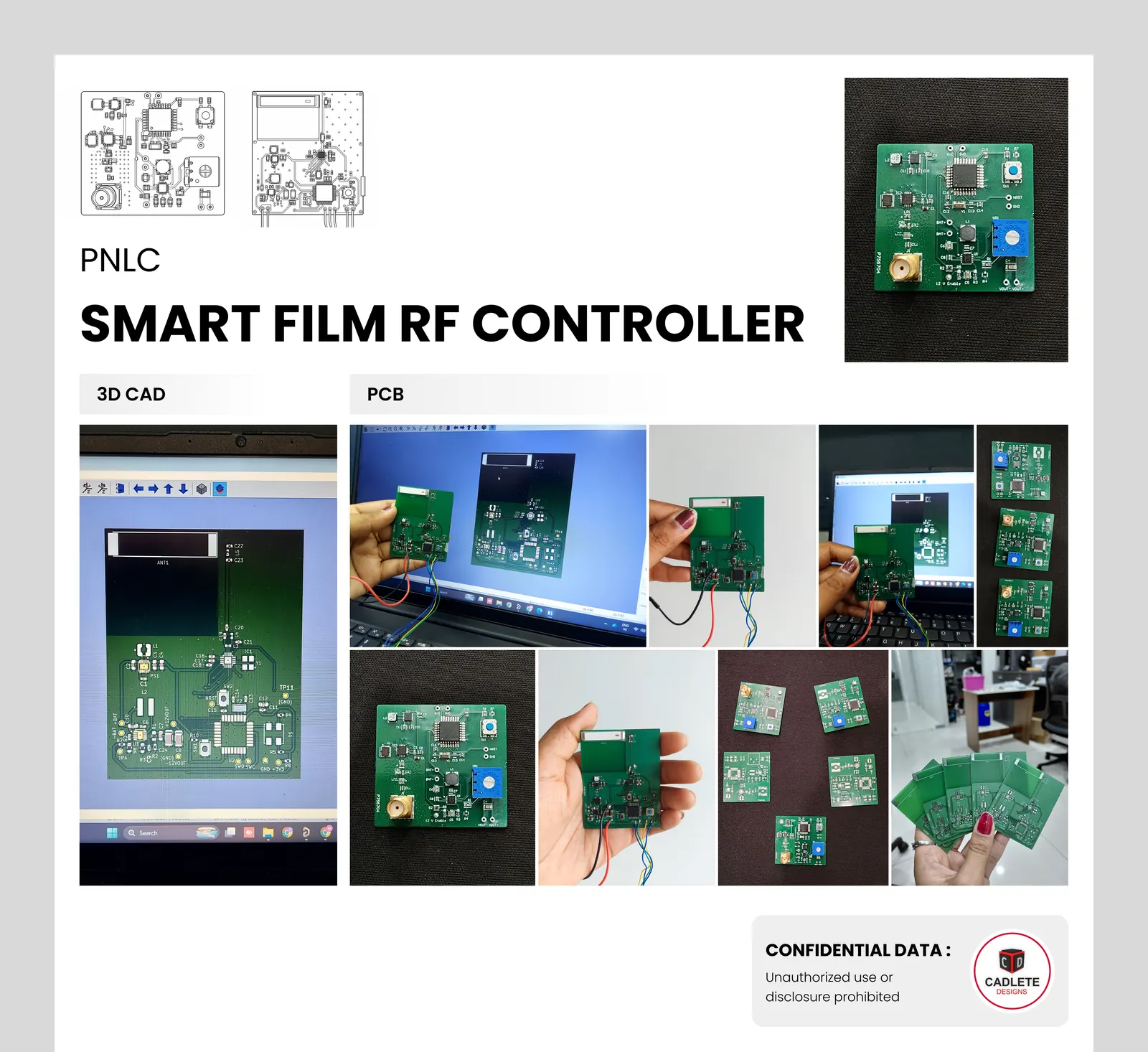

Long-Range RF Controller for PDLC Smart Film: 100 to 200 m Range on Microamp Power
Smart Film RF Controller: Switching Smart Glass from 200 Meters Away
PDLC smart film turns glass from clear to private at the flick of a switch, but wiring a switch to every panel is not always practical. Our client needed a battery-operated device that could control PDLC film remotely, over long distances.
CADLETE Designs developed a low-power RF receiver that turns a connected PDLC film on and off from a distance of 100 to 200 meters.
The engineering challenge was getting long range and long battery life at the same time. We handled the RF tuning needed to reach 100 to 200 meters, and optimized power consumption so the device uses only a few tens of microamps in sleep mode, with potential to go even lower.
The result is a wireless smart glass controller that offers dependable long-range control while running for a long time on battery power.
From Design Development to PCB Design & Fabrication
Every stage of this project, in the order it was built. Select a stage to see it full size.

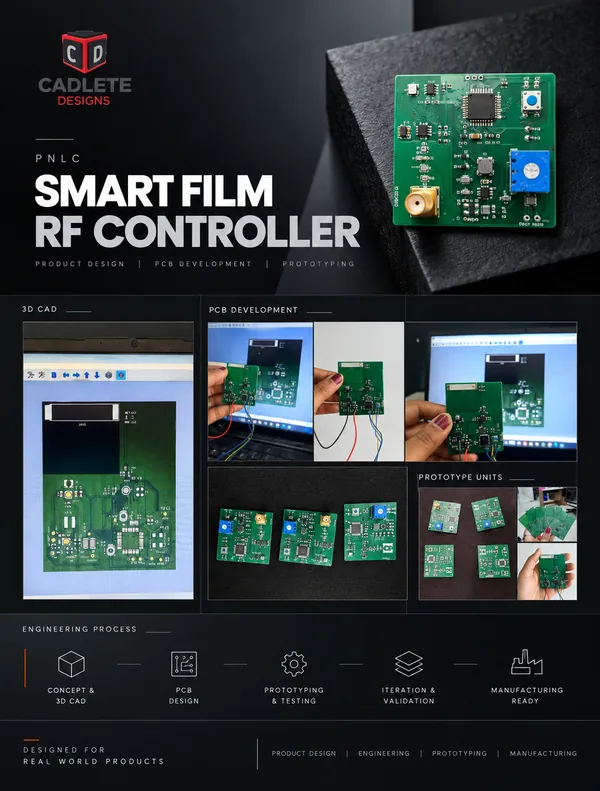

Project Overview

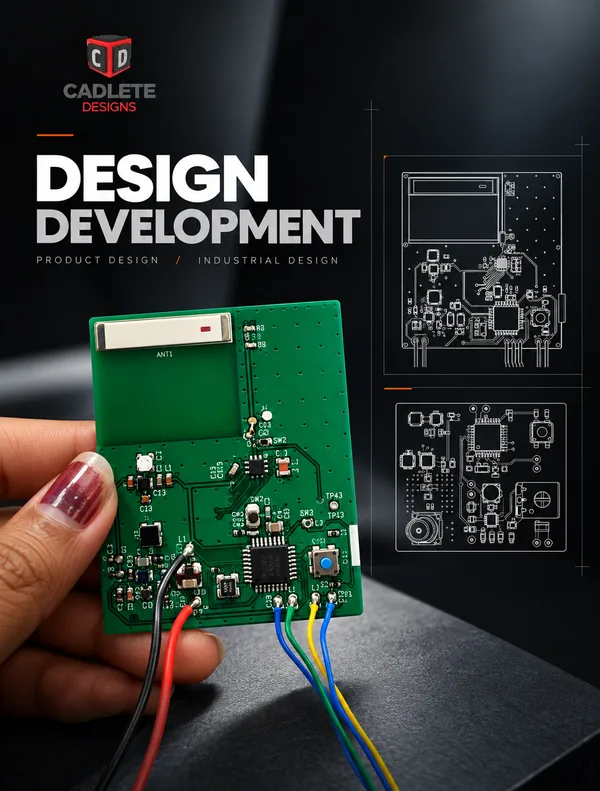

Design Development

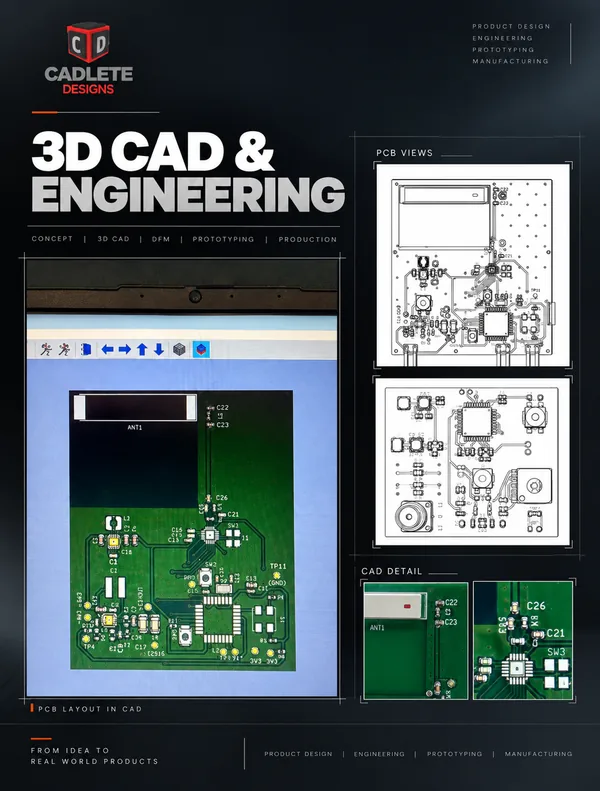

3D CAD

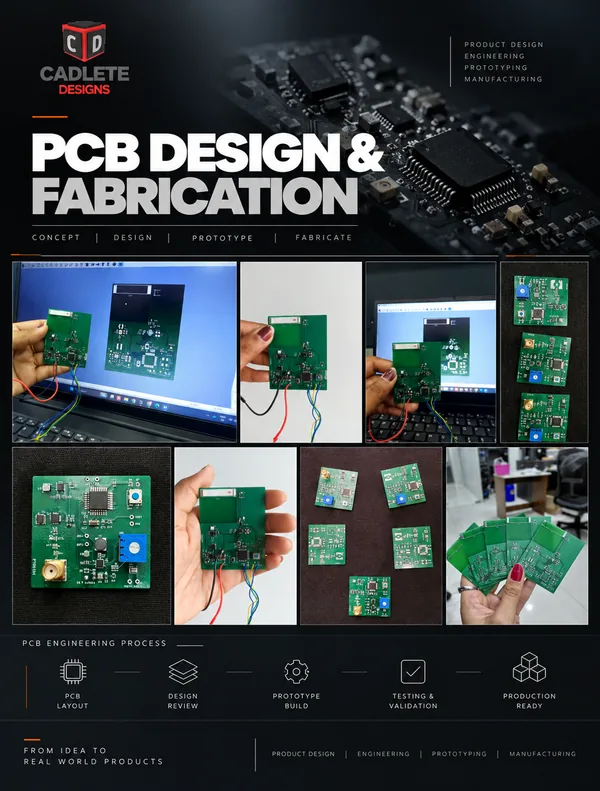

PCB Design & Fabrication

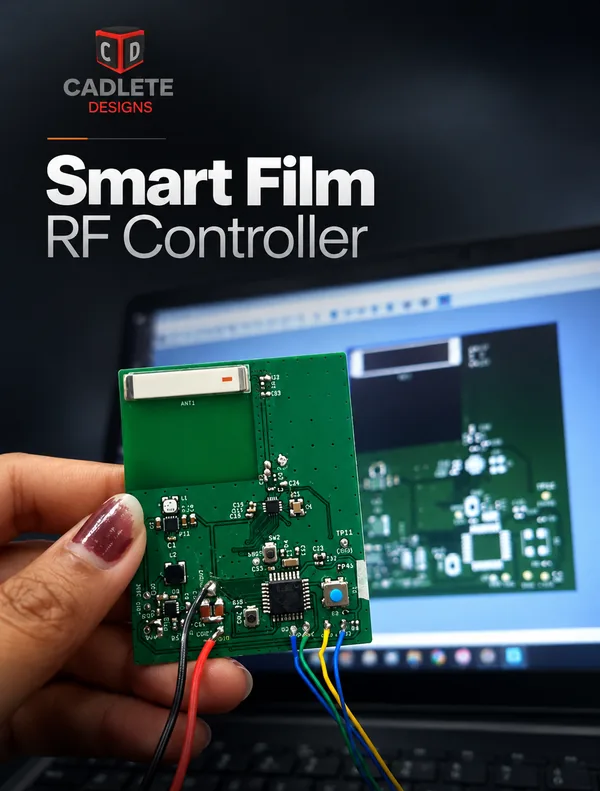

Product Showcase
Have a similar project in mind?
Free 30-minute consultation. A real engineer reads your brief, not a bot.
Related projects

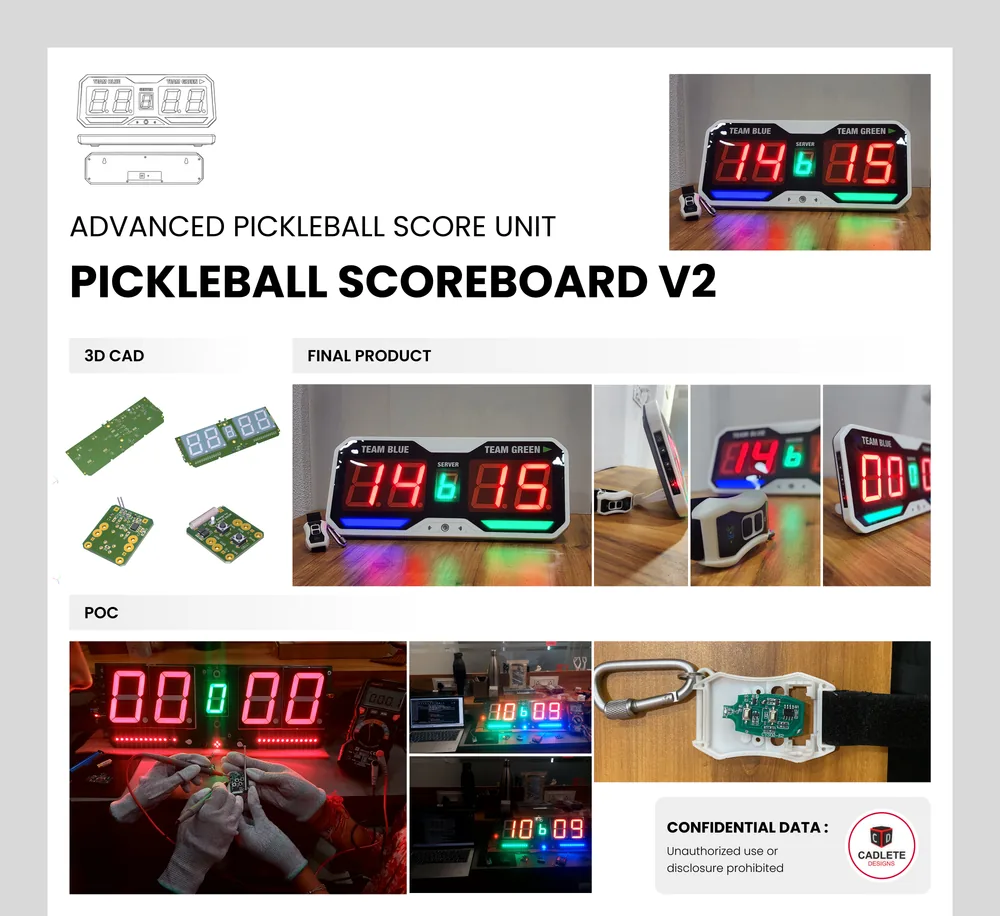

Pickleball Scoreboard V2
Industrial Design, Mechanical Development, PCB Design and Fabrication, Embedded Hardware

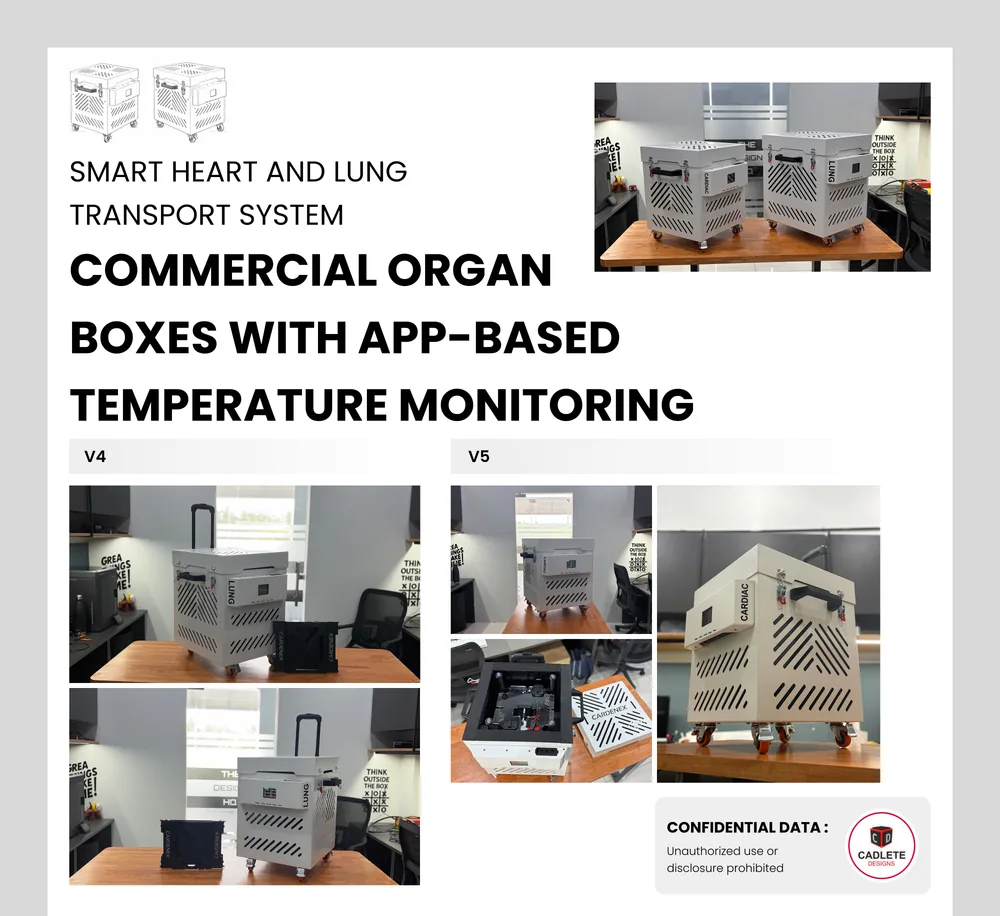

Heart and Lung Transport System
Medical Device Development, Industrial Design, Sheet Metal Fabrication, Design for Manufacturing

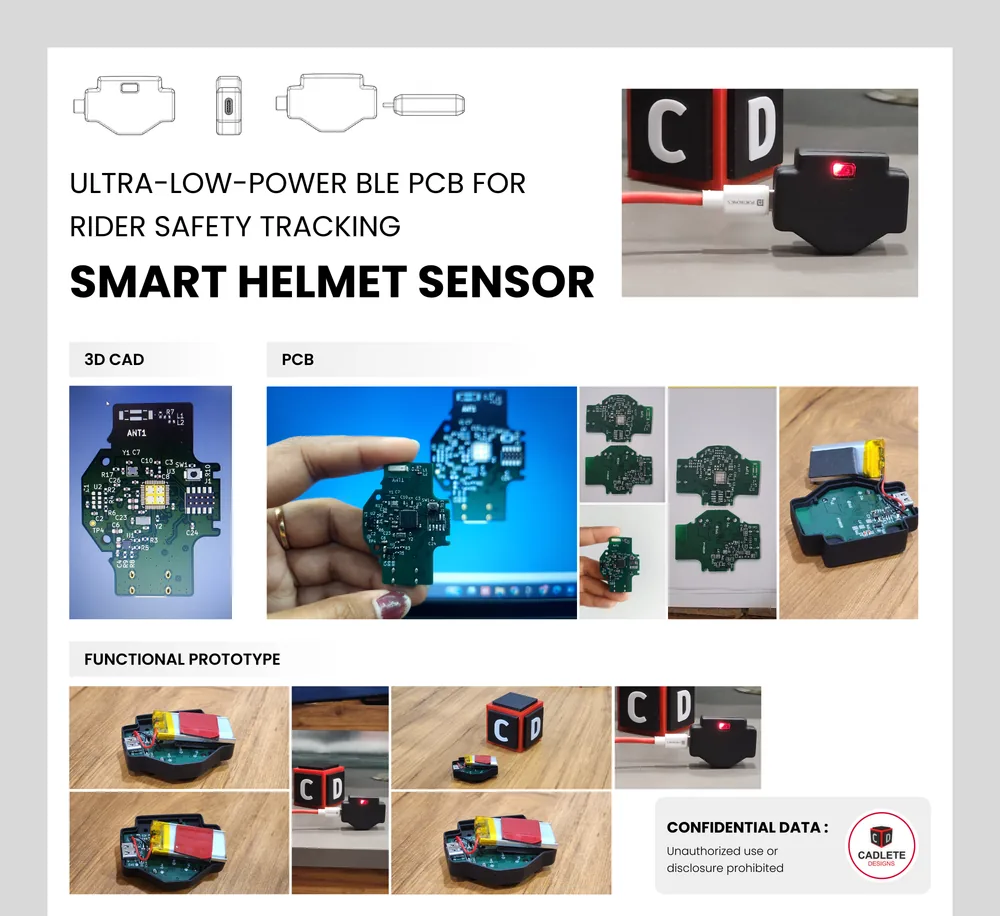

Smart Helmet Sensor
Electronics Design, Low-Power PCB Design, BLE (Bluetooth Low Energy), Wearable Electronics
Germiban Remote
Product Design, Electronics Enclosure Design, PCB Fitment Validation, High Quality SLA 3D Printing
Pickleball Scoreboard
Product Development, Electronics Design, PCB Design and Fabrication, Firmware Development

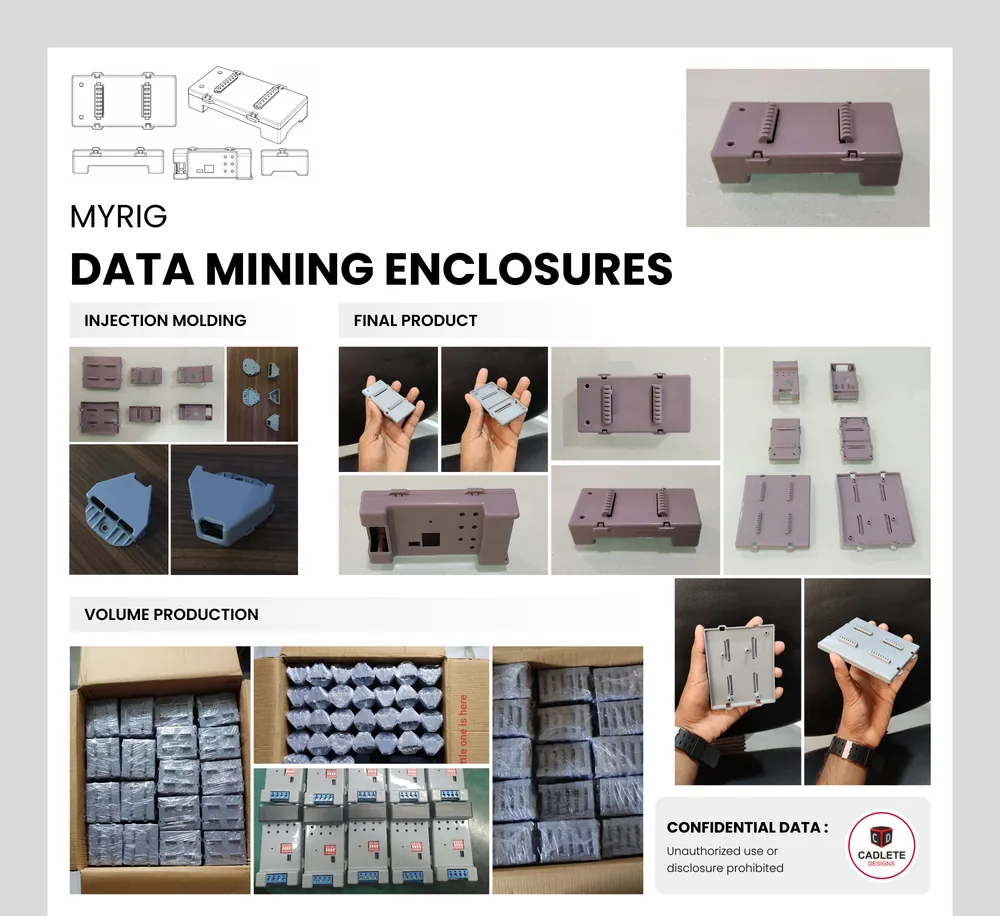

Data Mining Enclosures
