Smart Helmet Sensor: Ultra-Low-Power BLE PCB for Rider Safety Tracking
Smart Helmet Sensor: Proving Safe Riding, Ride After Ride
A helmet only protects riders when they actually wear it. Our client needed a reliable way to track whether a helmet is worn and for how long a rider has driven with it on, turning safe riding into measurable data.
CADLETE Designs developed a low-power PCB that reliably transmits the helmet's worn state and the distance the user has driven while wearing it correctly. The board can also send alerts and transmit data over BLE, all while operating on an extremely low power current.
Electronics are only useful if they stay in place, so we also designed the mechanical mounting mechanism, with anti-slip and anti-fall-off features to keep the device secure on the helmet.
The result is a compact, energy-efficient smart helmet module that supports rider safety programs with reliable, real-world data.
From Design Development to Functional Prototype
Every stage of this project, in the order it was built. Select a stage to see it full size.

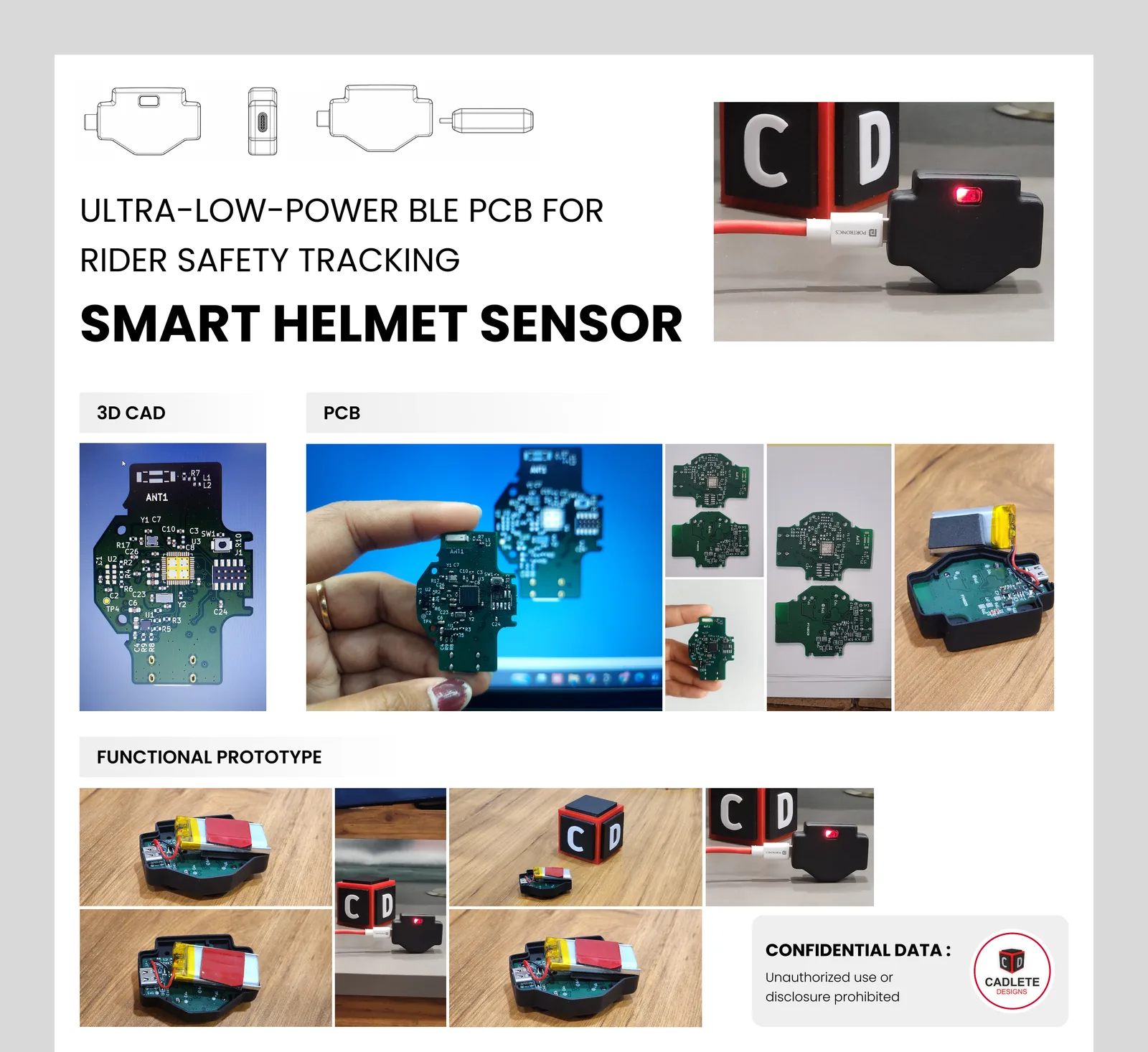

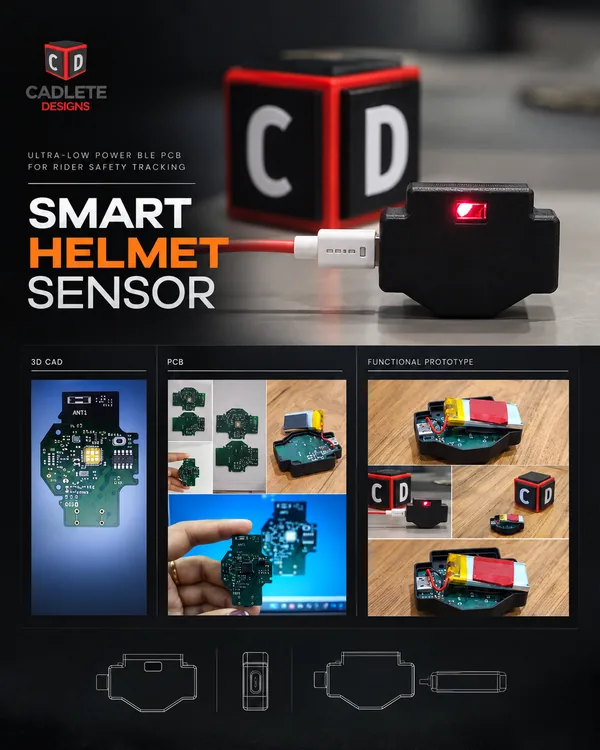

Project Overview

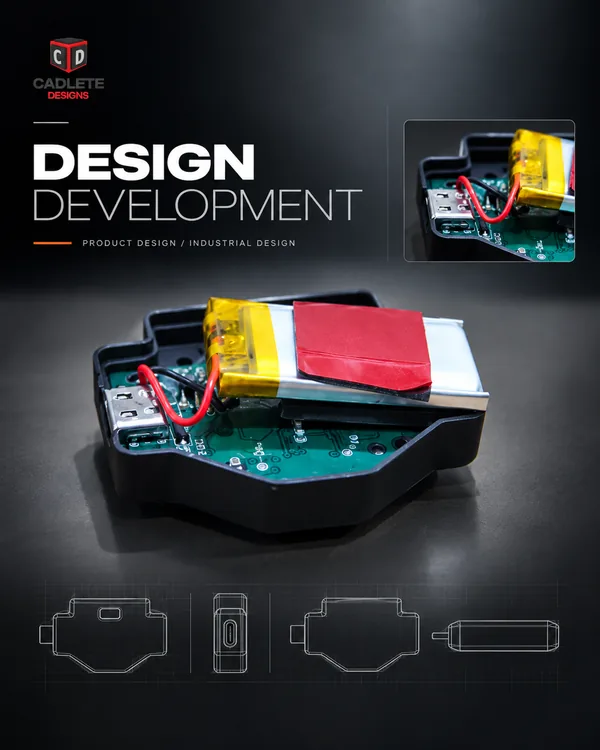

Design Development

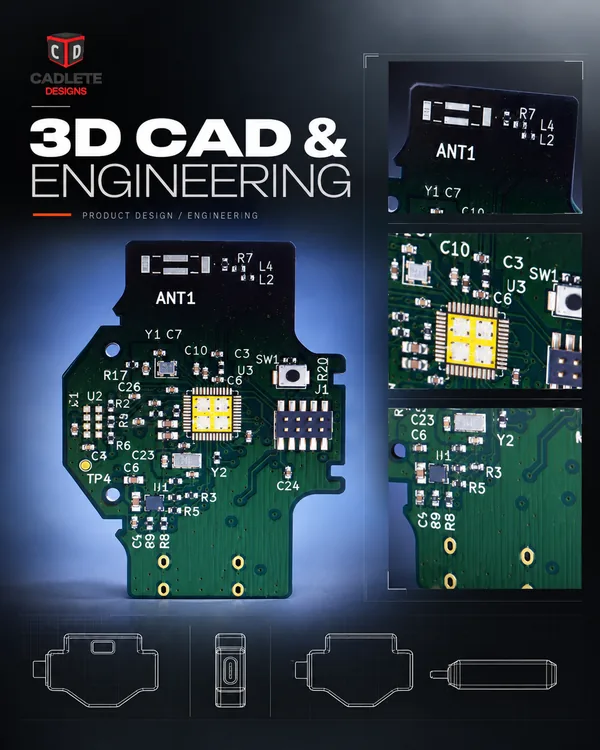

3D CAD

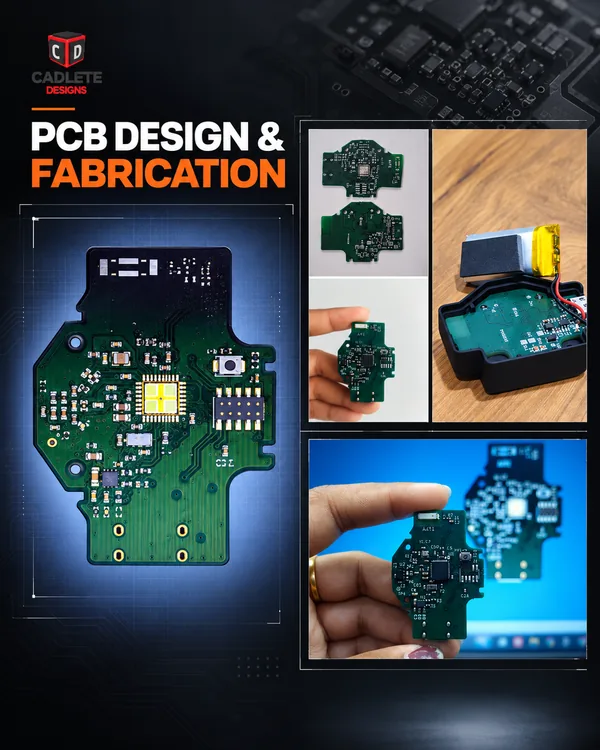

PCB Design & Fabrication

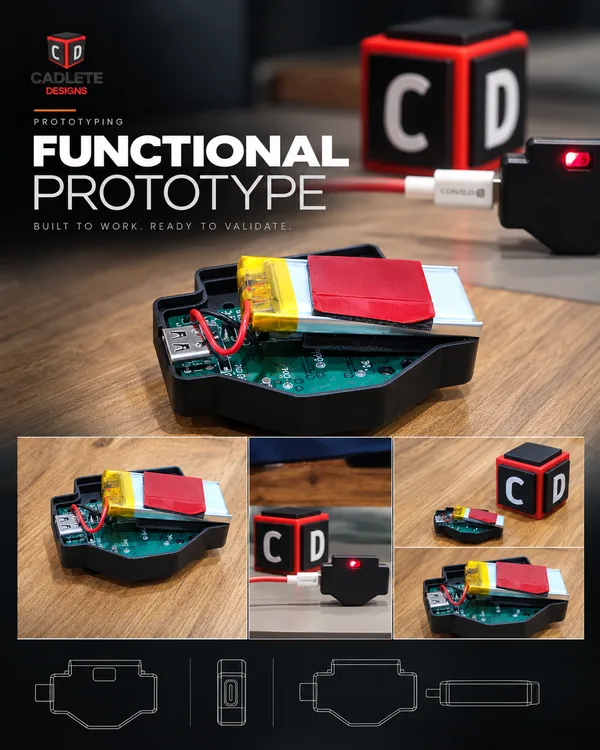

Functional Prototype

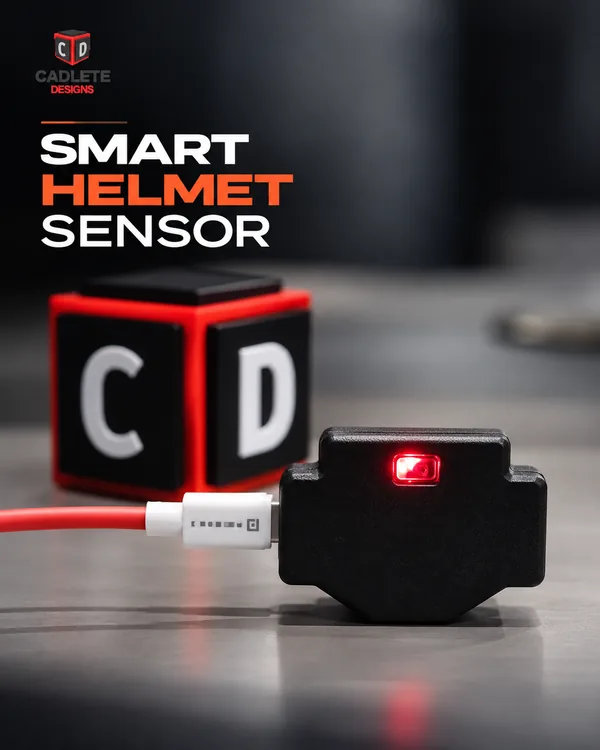

Product Showcase
Have a similar project in mind?
Free 30-minute consultation. A real engineer reads your brief, not a bot.
Related projects
Pickleball Scoreboard V2
Industrial Design, Mechanical Development, PCB Design and Fabrication, Embedded Hardware
Heart and Lung Transport System
Medical Device Development, Industrial Design, Sheet Metal Fabrication, Design for Manufacturing
Germiban Remote
Product Design, Electronics Enclosure Design, PCB Fitment Validation, High Quality SLA 3D Printing
Pickleball Scoreboard
Product Development, Electronics Design, PCB Design and Fabrication, Firmware Development
Data Mining Enclosures
Electronics Enclosure Design, Product Design, 3D CAD Development, Snap-Fit Design
Smart Phone Lock Pouch
Product Design, Mechanical Housing Design, 3D CAD Development, Locking Mechanism Design

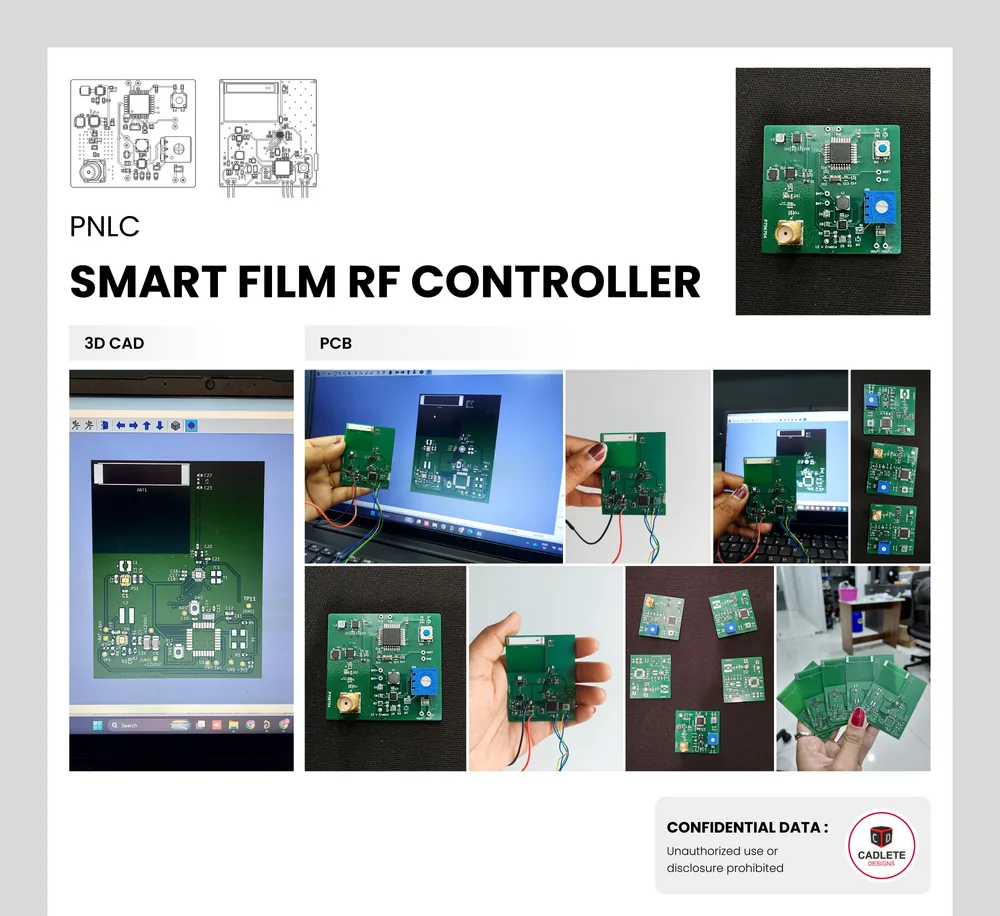

Smart Film RF Controller
